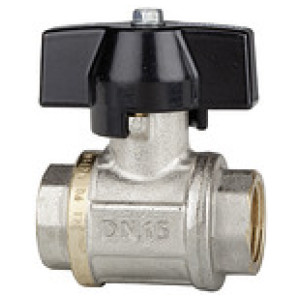

krogelni ventil robustnejša oblika, metuljasta ročica, IT/IT, G 1
SKU: 103291RIE
EAN: 4047322216333
Ball valve heavy duty design, Butterfly handle, IT/IT, nickel-plated brass, Operating temp. -20°C to 130°C, G 1, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
krogelni ventil robustnejša oblika, metuljasta ročica, IT/IT, G 1
Krogla: Chrome-plated brass
Material navojev: Brass with a bare metal surface
Ohišje: Nickel-plated brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Material navojev: Brass with a bare metal surface
Ohišje: Nickel-plated brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Aktivni filtri - 0
| Šifra | Navoj | E [mm] | F [mm] | DN | a/f [mm] | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103287RIE | G 1/4 | 6.5 | 6.5 | 8 | 18 | 40.5 | 43.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103288RIE | G 3/8 | 8.5 | 8.5 | 10 | 21 | 46.0 | 46.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103289RIE | G 1/2 | 9.5 | 9.5 | 15 | 26 | 55.0 | 54.5 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103290RIE | G 3/4 | 12.5 | 12.5 | 20 | 32 | 65.0 | 59.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103291RIE | G 1 | 13.5 | 13.5 | 25 | 39 | 76.0 | 73.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 5 od 5 zapisov
Opis
Ball valve heavy duty design, Butterfly handle, IT/IT, nickel-plated brass, Operating temp. -20°C to 130°C, G 1, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 130 |
| Navoj | G 1 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| PN [bar] | 80 |
| Ročica - metuljček | Aluminium, painted black |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| Material navojev | Brass with a bare metal surface |
| Ohišje | Nickel-plated brass |
| DN | 25 |
| L [mm] | 76.0 |
| A [mm] | 70.0 |
| B [mm] | 73.0 |
| E [mm] | 13.5 |
| F [mm] | 13.5 |
| a/f [mm] | 39 |
