* slike so simbolične
krogelni ventil robustnejša oblika, Z ročico, ročni, ET/ET, R 2
SKU: 103286RIE
EAN: 4047322216289
Ball valve heavy duty design, Manual lever, ET/ET, nickel-plated brass, Operating temp. -20 °C to 130 °C, R 2, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Čas dobave: Predvidoma 3 - 5 dni
253,38 €
ali od 12,37 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,37 € x 24 mesecev
- 23,67 € x 12 mesecev
- 46,31 € x 6 mesecev
- 91,60 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

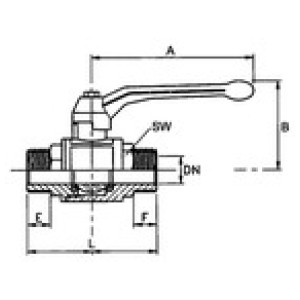

| Šifra | Navoj | DN | E [mm] | F [mm] | a/f [mm] | B [mm] | L [mm] | A [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103279RIE | R 1/4 | 8 | 10.9 | 10.9 | 18 | 51.5 | 54.5 | 75.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 22,00 € |  | |
| 103286RIE | R 2 | 50 | 25.0 | 25.0 | 70 | 117.8 | 159.5 | 175.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 253,38 € | | |
| 103280RIE | R 3/8 | 10 | 11.2 | 11.2 | 22 | 61.0 | 66.0 | 100.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 26,34 € | | |
| 103284RIE | R 1 1/4 | 32 | 21.2 | 21.2 | 50 | 96.4 | 122.4 | 150.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 117,64 € | | |
| 103285RIE | R 1 1/2 | 40 | 21.2 | 21.2 | 57 | 102.9 | 136.0 | 150.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 146,99 € | | |
| 103281RIE | R 1/2 | 15 | 14.9 | 14.9 | 27 | 64.0 | 82.0 | 100.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 33,09 € | | |
| 103283RIE | R 1 | 25 | 19.0 | 19.0 | 40 | 80.0 | 107.0 | 120.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 79,52 € | | |
| 103282RIE | R 3/4 | 20 | 16.0 | 16.0 | 33 | 76.0 | 95.0 | 120.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 50,57 € | |
Opis
Ball valve heavy duty design, Manual lever, ET/ET, nickel-plated brass, Operating temp. -20 °C to 130 °C, R 2, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 130 |
| Navoj | R 2 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| PN [bar] | 80 |
| Ročica | Aluminium, painted black |
| Standardni navoj | R thread acc. to DIN EN 10226 (ISO 7-1) |
| Material navojev | Brass with a bare metal surface |
| Ohišje | Nickel-plated brass |
| DN | 50 |
| L [mm] | 159.5 |
| A [mm] | 175.0 |
| B [mm] | 117.8 |
| E [mm] | 25.0 |
| F [mm] | 25.0 |
| a/f [mm] | 70 |
