* slike so simbolične

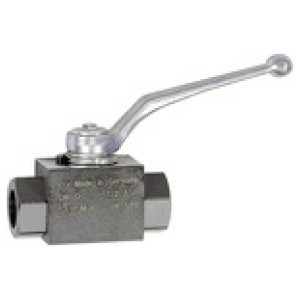

krogelni ventil, visoki tlak, G notranji navoj, jeklo, G 3/4
SKU: 103519RIE
EAN: 4047322082013
Ball valve, High pressure design, G interior thread, Steel, Operating temperature -10 °C to 100 °C, G 3/4, DN 20, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Obrestno financiranje
- 13,18 € x 6 mesecev
- 26,07 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

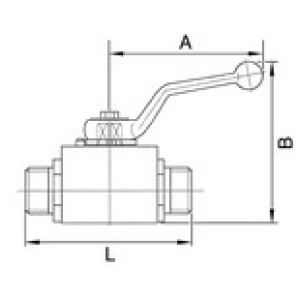

Šifra | Navoj | DN | L [mm] | B [mm] | A [mm] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
103520RIE | G 1 | 25 | 115.0 | 128.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 91,98 € | ||
103514RIE | G 1/8 | 4 | 69.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 39,54 € | ||
103516RIE | G 3/8 | 10 | 73.0 | 68.0 | 100.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 37,71 € | ||
103515RIE | G 1/4 | 6 | 69.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 32,22 € | ||
103518RIE | G 5/8 | 16 | 88.0 | 105.0 | 166.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 160,71 € | ||
103517RIE | G 1/2 | 12 | 82.0 | 92.0 | 112.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 41,21 € | ||
103519RIE | G 3/4 | 20 | 93.0 | 121.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 72,10 € |
Opis
Ball valve, High pressure design, G interior thread, Steel, Operating temperature -10 °C to 100 °C, G 3/4, DN 20, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Tehnični podatki in specifikacije
Ohišje | Steel |
Max. obratovalni tlak [bar] | 420 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 100 |
Navoj | G 3/4 |
DN | 20 |
Krogla | Hard-chrome plated steel |
Gred izbirnika | Steel |
Tesnilo gredi izbirnika | NBR |
Kontrolno kroglično tesnilo | POM |
Bore inball | Full bore |
A [mm] | 187.0 |
L [mm] | 93.0 |
B [mm] | 121.0 |
