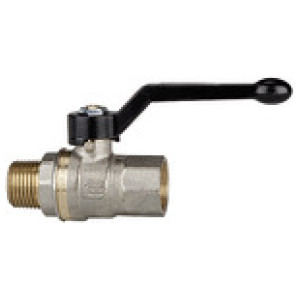

krogelni ventil z podaljšanim navojem, IT/ET, Rp/R 3/4

SKU: 103248RIE
EAN: 4047322277501

Ball valve long thread design, IT/ET, nickel-plated brass, Operating temperature -15 °C to 90 °C, Rp/R 3/4, DN 20, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.

Čas dobave: Predvidoma 3 - 5 dni
31,38 €
V košarico
Primerjaj z ostalimi

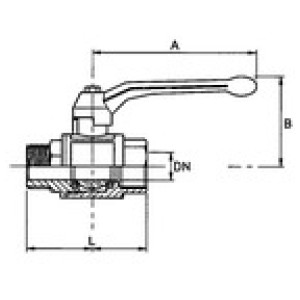

Šifra Navoj DN B [mm] L [mm] A [mm] Zaloga Cena Nakup Natisni
103245RIE Rp/R 1/4 8 42.0 51.0 85.0
Čas dobave: Predvidoma 3 - 5 dni
 19,11 €
Natisni
103250RIE Rp/R 1 1/4 32 70.0 103.0 130.0
Čas dobave: Predvidoma 3 - 5 dni
 73,49 €
Natisni
103246RIE Rp/R 3/8 10 42.0 54.0 85.0
Čas dobave: Predvidoma 3 - 5 dni
 19,36 €
Natisni
103251RIE Rp/R 1 1/2 40 76.0 113.0 130.0
Čas dobave: Predvidoma 3 - 5 dni
 112,76 €
Natisni
103249RIE Rp/R 1 25 57.0 89.0 105.0
Čas dobave: Predvidoma 3 - 5 dni
 45,30 €
Natisni
103252RIE Rp/R 2 50 92.0 136.0 165.0
Čas dobave: Predvidoma 3 - 5 dni
 173,48 €
Natisni
103247RIE Rp/R 1/2 15 46.0 67.0 85.0
Čas dobave: Predvidoma 3 - 5 dni
 22,72 €
Natisni
103248RIE Rp/R 3/4 20 53.0 78.0 105.0
Čas dobave: Predvidoma 3 - 5 dni
 31,38 €
Natisni

Opis

Ball valve long thread design, IT/ET, nickel-plated brass, Operating temperature -15 °C to 90 °C, Rp/R 3/4, DN 20, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.

Tehnični podatki in specifikacije

Material Nickel-plated brass
Max. obratovalni tlak [bar] 40
Min. delovna temperatura [°C] -15
Max. delovna temperatura [°C] 90
Navoj Rp/R 3/4
Krogla Chrome-plated brass
Krogelno tesnilo PTFE
Stebelno tesnilo HNBR / EPDM / PTFE
Ročica Aluminium, painted black
Standardni navoj Thread acc. to ISO 7-1
Material navojev Brass with a bare metal surface
DN 20
L [mm] 78.0
A [mm] 105.0
B [mm] 53.0
