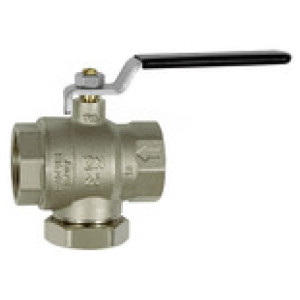

krogelni ventil z vgrajenim izpustom, nikljana medenina, G 3/4
SKU: 133555RIE
EAN: 4047322478847
Ball valve, integrated strainer, nickel-plated brass, Operating temp. -20°C to 100°C, G 3/4, DN 16, PN max. 30 bar, Mesh size 0.5
Space and cost saving combination made of ball valve and dirt strainer in one.
Replaces the sequence of ball valve - dirt strainer - ball valve and thus reduces installation time and costs.

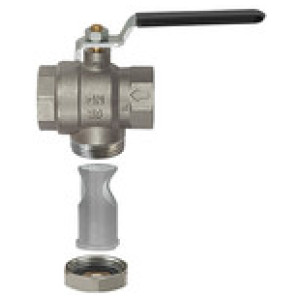

The can be removed easily in locked, pressure released status for cleaning.

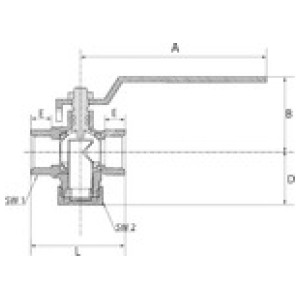

| Šifra | Navoj | E [mm] | DN | PN [bar] | a/f 1 [mm] | a/f 2 [mm] | D [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133556RIE | G 1 | 15.0 | 20 | 30 | 38 | 38 | 38.7 | 50.8 | 70.1 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 51,02 € |  | |
| 133554RIE | G 1/2 | 11.0 | 12 | 30 | 25 | 24 | 31.0 | 44.2 | 50.7 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,55 € | | |
| 133557RIE | G 1 1/4 | 17.0 | 28 | 20 | 48 | 46 | 51.5 | 74.0 | 85.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 95,25 € | | |
| 133559RIE | G 2 | 20.0 | 46 | 20 | 66 | 65 | 68.5 | 88.5 | 117.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 210,45 € | | |
| 133555RIE | G 3/4 | 13.0 | 16 | 30 | 31 | 30 | 35.1 | 47.4 | 61.3 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 36,45 € | | |
| 133558RIE | G 1 1/2 | 17.0 | 36 | 20 | 54 | 55 | 57.5 | 80.0 | 97.5 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 132,74 € | |
Opis
Ball valve, integrated strainer, nickel-plated brass, Operating temp. -20°C to 100°C, G 3/4, DN 16, PN max. 30 bar, Mesh size 0.5
Space and cost saving combination made of ball valve and dirt strainer in one.
Replaces the sequence of ball valve - dirt strainer - ball valve and thus reduces installation time and costs.
The can be removed easily in locked, pressure released status for cleaning.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 100 |
| Navoj | G 3/4 |
| Krogla | Chrome-plated brass (CW617N) |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR / FKM |
| PN [bar] | 30 |
| Ročica | Galvanised steel with plastic coating |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1 |
| Material navojev | Nickel-plated brass (CW617N) |
| Ohišje | Nickel-plated brass (CW617N) |
| Zaslon | Stainless steel, mesh size 0.5 mm |
| DN | 16 |
| L [mm] | 61.3 |
| A [mm] | 100.0 |
| B [mm] | 47.4 |
| E [mm] | 13.0 |
| D [mm] | 35.1 |
| a/f 1 [mm] | 31 |
| a/f 2 [mm] | 30 |
