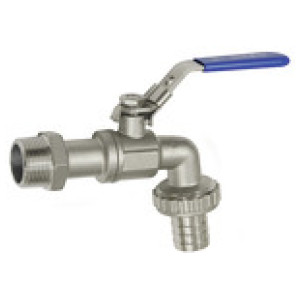

Kroglični izpustni ventil, nerjavno jeklo 1.4408, G 1/2 ET, DN 15
SKU: 103420RIE
EAN: 4047322395168
Ball drain valve, Stainless steel 1.4408, Temperature range -10 °C to 150 °C, G 1/2 ET, DN 15, PN max. 16 bar
With hose connector, with lockable hand lever.
Čas dobave 3 - 5 dni
27,79 €
| Šifra | Povezava | Priključni navoj stebla | Za cevi [mm] | DN | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103421RIE | G 3/4 ET | G 1 | I.D. 19 | 20 | 102.0 | 156.0 | Čas dobave 3 - 5 dni | 35,77 € |  | |
| 103420RIE | G 1/2 ET | G 3/4 | I.D. 13 | 15 | 91.0 | 149.0 | Čas dobave 3 - 5 dni | 27,79 € | | |
| 103422RIE | G 1 ET | G 1 1/4 | I.D. 25 | 25 | 116.0 | 145.0 | Čas dobave 3 - 5 dni | 49,45 € | |
Opis
Ball drain valve, Stainless steel 1.4408, Temperature range -10 °C to 150 °C, G 1/2 ET, DN 15, PN max. 16 bar
With hose connector, with lockable hand lever.
Tehnični podatki in specifikacije
| Material | Stainless steel 1.4408 |
| Za cevi [mm] | I.D. 13 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 150 |
| Povezava | G 1/2 ET |
| Priključni navoj stebla | G 3/4 |
| DN | 15 |
| Tesnilo | NBR |
| PN [bar] | 16 |
| Standardni navoj | G thread acc. to ISO 228-1 |
| Material navojev | Stainless steel 1.4408 |
| L [mm] | 149.0 |
| A [mm] | 90.0 |
| H [mm] | 91.0 |
| Aplikacije | Water, gaseous and non-corrosive media, compressed air |
