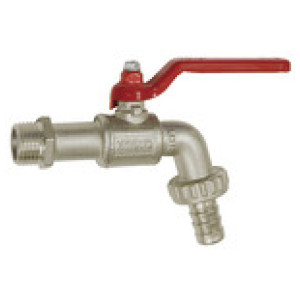

Kroglični izpustni ventil, nikljana medenina, G 3/4 ET, DN 20
SKU: 103418RIE
EAN: 4047322395144
Ball drain valve, nickel-plated brass, Temperature range -20 °C to 80 °C, G 3/4 ET, DN 20, PN max. 15 bar
With hose connector.
Čas dobave 3 - 5 dni
27,47 €

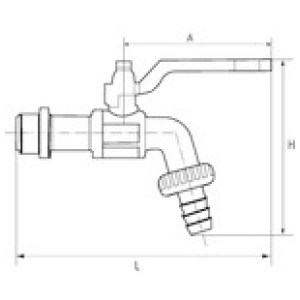

| Šifra | Povezava | Priključni navoj stebla | Za cevi [mm] | PN [bar] | DN | A [mm] | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103419RIE | G 1 ET | G 1 1/4 | I.D. 25 | 12 | 25 | 88.5 | 126.0 | 158.0 | Čas dobave 3 - 5 dni | 42,26 € |  | |
| 103418RIE | G 3/4 ET | G 1 | I.D. 19 | 15 | 20 | 88.5 | 109.0 | 148.5 | Čas dobave 3 - 5 dni | 27,47 € | | |
| 103417RIE | G 1/2 ET | G 3/4 | I.D. 13 | 15 | 15 | 80.0 | 93.0 | 137.0 | Čas dobave 3 - 5 dni | 22,41 € | | |
| 103416RIE | G 3/8 ET | G 3/4 | I.D. 13 | 15 | 10 | 80.0 | 93.0 | 135.0 | Čas dobave 3 - 5 dni | 19,46 € | |
Opis
Ball drain valve, nickel-plated brass, Temperature range -20 °C to 80 °C, G 3/4 ET, DN 20, PN max. 15 bar
With hose connector.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Za cevi [mm] | I.D. 19 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Povezava | G 3/4 ET |
| Priključni navoj stebla | G 1 |
| DN | 20 |
| Tesnilo | NBR |
| PN [bar] | 15 |
| Standardni navoj | G thread acc. to ISO 228-1 |
| Material navojev | Nickel-plated brass |
| L [mm] | 148.5 |
| A [mm] | 88.5 |
| H [mm] | 109.0 |
| Aplikacije | Water, gaseous and non-corrosive media, compressed air |
