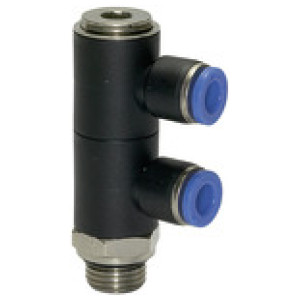

L-multi-dist. Blue serija, 2-stransko, vrt., G 3/8
SKU: 109654RIE
EAN: 4047322199971
L-multi-distributor »Blue Series«, 2-fold, rotating, G 3/8 o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
15,49 €
| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109658RIE | G 1/2 | 8 | 12 | 24 | 35.4 | 64.2 | Čas dobave: Predvidoma 3 - 5 dni | 21,09 € |  | |
| 109655RIE | G 3/8 | 8 | 12 | 20 | 32.8 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 15,98 € | | |
| 109653RIE | G 3/8 | 8 | 8 | 20 | 28.5 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 14,38 € | | |
| 109652RIE | G 3/8 | 8 | 6 | 20 | 23.6 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 18,01 € | | |
| 109657RIE | G 1/2 | 8 | 10 | 24 | 34.7 | 64.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,30 € | | |
| 109646RIE | G 1/4 | 6 | 4 | 17 | 24.7 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,67 € | | |
| 109656RIE | G 1/2 | 8 | 8 | 24 | 28.5 | 64.2 | Čas dobave: Predvidoma 3 - 5 dni | 15,14 € | | |
| 109644RIE | G 1/8 | 4 | 6 | 14 | 21.5 | 43.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 109648RIE | G 1/4 | 6 | 8 | 17 | 26.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
| 109650RIE | G 1/4 | 6 | 12 | 17 | 30.8 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,53 € | | |
| 109649RIE | G 1/4 | 6 | 10 | 17 | 29.9 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,31 € | | |
| 109651RIE | G 3/8 | 8 | 4 | 20 | 24.5 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,03 € | | |
| 109645RIE | G 1/8 | 4 | 8 | 14 | 24.5 | 43.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 109647RIE | G 1/4 | 6 | 6 | 17 | 23.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
| 109643RIE | G 1/8 | 4 | 4 | 14 | 22.5 | 43.8 | Čas dobave: Predvidoma 3 - 5 dni | 10,31 € | | |
| 109654RIE | G 3/8 | 8 | 10 | 20 | 31.9 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 15,49 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 60.7 |
| L2 [mm] | 31.9 |
| a/f [mm] | 20 |
| Šestkotna glava vtičnice [mm] | 8 |
| Material | Plastic and nickel-plated brass |
