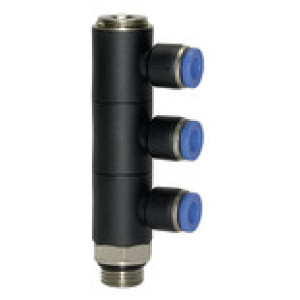

L-multi-dist. Blue serija", 3-stransko, vrt., G 1/8
SKU: 109676RIE
EAN: 4047322200028
L-multi-distributor »Blue Series«, 3-fold, rotating, G 1/8 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
9,78 €
| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 135693RIE | G 1/2 | 8 | 8 | 24 | 28.5 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 23,38 € |  | |
| 109679RIE | G 1/4 | 6 | 8 | 17 | 26.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,86 € | | |
| 135692RIE | G 3/8 | 8 | 6 | 20 | 24.5 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,09 € | | |
| 109677RIE | G 1/8 | 4 | 8 | 14 | 24.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
| 109680RIE | G 1/4 | 6 | 10 | 17 | 29.9 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,16 € | | |
| 109683RIE | G 3/8 | 8 | 10 | 20 | 31.9 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 21,70 € | | |
| 109682RIE | G 3/8 | 8 | 8 | 20 | 28.5 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,29 € | | |
| 135695RIE | G 1/2 | 8 | 12 | 24 | 35.4 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 26,01 € | | |
| 109678RIE | G 1/4 | 6 | 6 | 17 | 23.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,04 € | | |
| 135694RIE | G 1/2 | 8 | 10 | 24 | 34.5 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 24,86 € | | |
| 135691RIE | G 3/8 | 8 | 4 | 20 | 23.5 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,62 € | | |
| 135690RIE | G 1/4 | 6 | 4 | 17 | 24.5 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,43 € | | |
| 109681RIE | G 1/4 | 6 | 12 | 17 | 30.8 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,09 € | | |
| 109684RIE | G 3/8 | 8 | 12 | 20 | 32.8 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 22,52 € | | |
| 109675RIE | G 1/8 | 4 | 4 | 14 | 22.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
| 109676RIE | G 1/8 | 4 | 6 | 14 | 21.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,78 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 59.1 |
| L2 [mm] | 21.5 |
| a/f [mm] | 14 |
| Šestkotna glava vtičnice [mm] | 4 |
| Material | Plastic and nickel-plated brass |
