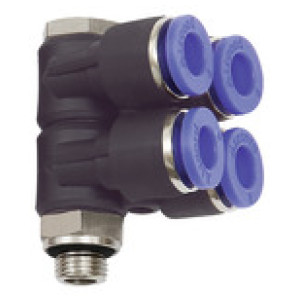

L-multi-dist. Blue serija", 4-stransko, vrt., G 3/8
SKU: 109701RIE
EAN: 4047322394161
L-multi-distributor »Blue Series«, 4-fold, rotating, G 3/8 o., for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
19,91 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109700RIE | G 3/8 | 10 | 19 | 33.7 | 56.5 | Čas dobave: Predvidoma 3 - 5 dni | 20,47 € |  | |
| 109699RIE | G 1/4 | 10 | 19 | 33.7 | 55.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,65 € | | |
| 109698RIE | G 1/4 | 8 | 17 | 28.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,70 € | | |
| 109702RIE | G 1/2 | 12 | 24 | 37.5 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,47 € | | |
| 109695RIE | G 1/8 | 6 | 12 | 24.0 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,07 € | | |
| 109696RIE | G 1/8 | 8 | 14 | 28.5 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,07 € | | |
| 109697RIE | G 1/4 | 6 | 14 | 24.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,54 € | | |
| 114594RIE | G 1/8 | 4 | 14 | 24.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,34 € | | |
| 109701RIE | G 3/8 | 12 | 24 | 37.5 | 63.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,91 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 63.5 |
| L2 [mm] | 37.5 |
| a/f [mm] | 24 |
| Material | Plastic and nickel-plated brass |
