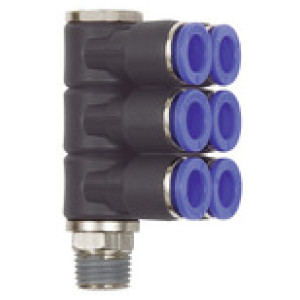

L-multi-dist. Blue serija", 6-stransko, vrt., R 1/4
SKU: 109723RIE
EAN: 4047322394376
L-multi-distributor »Blue Series«, 6-fold, rotating, R 1/4 o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
16,71 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109720RIE | R 1/8 | 8 | 14 | 28.5 | 56.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,08 € |  | |
| 109722RIE | R 1/4 | 8 | 14 | 28.5 | 58.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,77 € | | |
| 109726RIE | R 1/2 | 12 | 24 | 37.5 | 75.5 | Čas dobave: Predvidoma 3 - 5 dni | 35,68 € | | |
| 109719RIE | R 1/8 | 6 | 12 | 24.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,08 € | | |
| 109725RIE | R 3/8 | 12 | 24 | 37.5 | 72.5 | Čas dobave: Predvidoma 3 - 5 dni | 27,05 € | | |
| 109721RIE | R 1/4 | 6 | 14 | 24.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,21 € | | |
| 109724RIE | R 3/8 | 10 | 19 | 33.7 | 72.5 | Čas dobave: Predvidoma 3 - 5 dni | 25,92 € | | |
| 109723RIE | R 1/4 | 10 | 19 | 33.7 | 71.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,71 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 71.5 |
| L2 [mm] | 33.7 |
| a/f [mm] | 19 |
| Material | Plastic and nickel-plated brass |
