L-obročni del, G 3/8 za cev zunanji Ø 10 mm slika
L-obročni del, G 3/8 za cev zunanji Ø 10 mm slika

* slike so simbolične

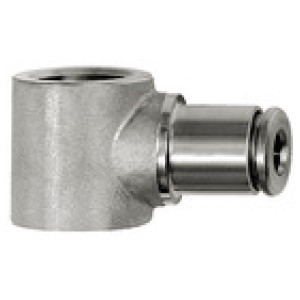

L-obročni del, G 3/8 za cev zunanji Ø 10 mm

SKU: 110454RIE
EAN: 4047322387637

L-ring piece, G 3/8, for hose exterior Ø 10 mm, Working pressure max. 15 bar, Stainless steel 1.4404

For use with aggressive media and in areas susceptible to corrosive outside

influences, in the food processing industry and in hygienic and sanitary applications.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

L-ring piece, G 3/8, for hose exterior Ø 10 mm, Working pressure max. 15 bar, Stainless steel 1.4404

For use with aggressive media and in areas susceptible to corrosive outside

influences, in the food processing industry and in hygienic and sanitary applications.

Tehnični podatki in specifikacije

Max. delovni tlak [bar] 15
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 150
Delovni tlak pulzira [bar] 10
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 150
Primerni materiali za cevi PVDF, PTFE, PA, PU
Navoj G 3/8
Za cevi O.D. [mm] 10

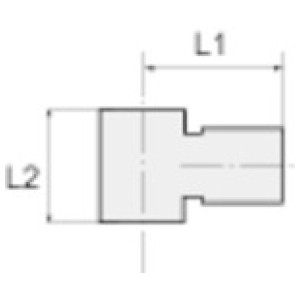

L1 [mm] 29.0
L2 [mm] 20.0
Standardni navoj DIN EN ISO 228-1
Material Stainless steel 1.4404
