Linijski filter za manometer, G 1/4 IT, G 1/4 ET, 200 µm
SKU: 133873RIE
EAN: 9092030

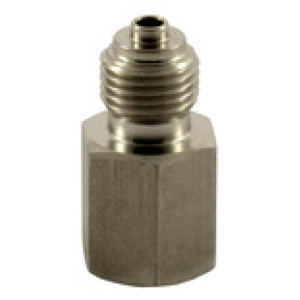

Pressure gauge in-line filter, G 1/4 IT, G 1/4 ET, 200 µm, stainless steel 1.4571, max. 100 bar, Temp. -25 °C to 200 °C
Pressure gauge in-line filters are installed on pressure gauges in dirt-sensitive hydraulic / pneumatic system circuits in order to filter out solids from gaseous and liquid media (floating body retention). Stoppage of small pressure inlet channels and capillary throttles is prevented by their use. Furthermore particles do not jam in dirt-sensitive media chambers and the resulting appearances of a jam are avoided. Preliminary filters act as throttles and dampers with pressure shocks and pressure surges.

Obrestno financiranje
- 11,53 € x 6 mesecev
- 22,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj 1 | Navoj 2 | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
133873RIE | G 1/4 ET | G 1/4 IT | 17 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 63,12 € | | |
143860RIE | G 1/2 ET | G 1/2 IT | 27 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 70,92 € | |
Opis
Pressure gauge in-line filter, G 1/4 IT, G 1/4 ET, 200 µm, stainless steel 1.4571, max. 100 bar, Temp. -25 °C to 200 °C
Pressure gauge in-line filters are installed on pressure gauges in dirt-sensitive hydraulic / pneumatic system circuits in order to filter out solids from gaseous and liquid media (floating body retention). Stoppage of small pressure inlet channels and capillary throttles is prevented by their use. Furthermore particles do not jam in dirt-sensitive media chambers and the resulting appearances of a jam are avoided. Preliminary filters act as throttles and dampers with pressure shocks and pressure surges.
Tehnični podatki in specifikacije
Navoj 1 | G 1/4 ET |
Navoj 2 | G 1/4 IT |
a/f [mm] | 17 |
Dolžina [mm] | 32.0 |
Razpon tlaka | Max. 100 bar |
Min. temperaturno območje [°C] | -25 |
Max. temperaturno območje [°C] | 200 |
Rang filtra [µm] | 200 |
Material | Stainless steel 1.4571 |
