Mali naoljevalnik, G 1/4, Operating pressure 2 - 15 bar
SKU: 101527RIE
EAN: 4047322117845

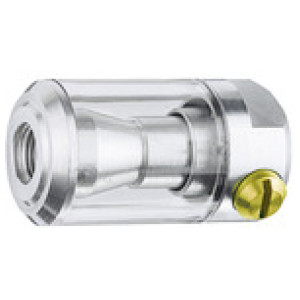

Mini mist oiler, G 1/4, Operating pressure 2 - 15 bar, Medium / ambient temp. max. 50 °C, Oil container made of polycarbonate
For mounting on pneumatic impact tools (nail drivers, tackers, screwdrivers) which work intermittently.
Also suitable for tools with continuous compressed air demand (grinding and polishing machines).
Fixed drip rate: Approx. 0.4 cm³ per 100 work cycles, one filling = 3000 work cycles.
Oil consumption in continuous operation (at 6 bar): 0.15 cm³ / Nm³ (varies depending on ambient temperature and oil used).
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
101527RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 28,58 € | | |
101528RIE | G 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 28,58 € | |
Opis
Mini mist oiler, G 1/4, Operating pressure 2 - 15 bar, Medium / ambient temp. max. 50 °C, Oil container made of polycarbonate
For mounting on pneumatic impact tools (nail drivers, tackers, screwdrivers) which work intermittently.
Also suitable for tools with continuous compressed air demand (grinding and polishing machines).
Fixed drip rate: Approx. 0.4 cm³ per 100 work cycles, one filling = 3000 work cycles.
Oil consumption in continuous operation (at 6 bar): 0.15 cm³ / Nm³ (varies depending on ambient temperature and oil used).
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Min. obratovalni tlak [bar] | 2 |
Max. obratovalni tlak [bar] | 15 |
Max. temperatura medija [°C] | 50 |
Max. sobna temperatura [°C] | 50 |
DN | 8 |
Vgradni položaj | Oil intake at the lowest point |
Posoda za olje | Polycarbonate |
Smer pretoka | any |

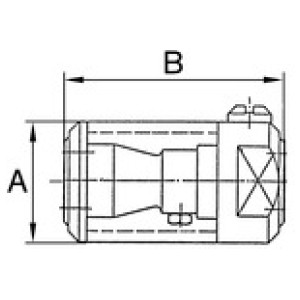

A [mm] | 33.0 |
B [mm] | 60.0 |
Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
