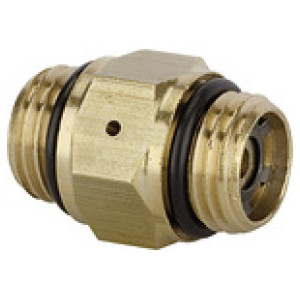

Mali tlačnii regulator, G 1/4 ET/ET, prednastavljen na 4 bar
SKU: 101507RIE
EAN: 4047322247382
Mini pressure regulator, G 1/4 ET / ET, Working pressure (pre-set) 4 bar, PN max. 12 bar
"This preset pressure regulator guarantees optimal pressure conditions, especially in blow guns. The pressure regulator is inserted into the compressed air line. Fits onto any 1/4"" thread and maintains the pressure at optimum, thus helping to reduce the costs for energy. Tamper-proof.
"Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Mali tlačnii regulator, G 1/4 ET/ET, prednastavljen na 4 bar
Navoj: G 1/4 ET/ET
Ohišje: Brass
Pretok: 0 - 400 l/min
Vzmet: Stainless steel
Ohišje: Brass
Pretok: 0 - 400 l/min
Vzmet: Stainless steel
| Šifra | Delovni tlak (prednastavitev) [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 101507RIE | 4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101506RIE | 2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101508RIE | 6 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mini pressure regulator, G 1/4 ET / ET, Working pressure (pre-set) 4 bar, PN max. 12 bar
"This preset pressure regulator guarantees optimal pressure conditions, especially in blow guns. The pressure regulator is inserted into the compressed air line. Fits onto any 1/4"" thread and maintains the pressure at optimum, thus helping to reduce the costs for energy. Tamper-proof.
"Tehnični podatki in specifikacije
| Navoj | G 1/4 ET/ET |
| Max. vhodni tlak [bar] | 12 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 60 |
| Ohišje | Brass |
| Pretok | 0 - 400 l/min |
| Vzmet | Stainless steel |
| Delovni tlak (prednastavitev) [bar] | 4 |

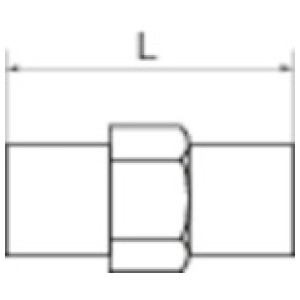

| L [mm] | 24.0 |
