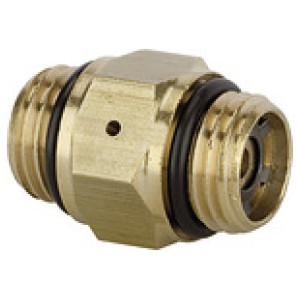

Mali tlačnii regulator, G 1/4 ET/ET, prednastavljen na 6 bar slika
Mali tlačnii regulator, G 1/4 ET/ET, prednastavljen na 6 bar slika

* slike so simbolične

Mali tlačnii regulator, G 1/4 ET/ET, prednastavljen na 6 bar

SKU: 101508RIE
EAN: 4047322327695

Mini pressure regulator, G 1/4 ET / ET, Working pressure (pre-set) 6 bar, PN max. 12 bar

"

This preset pressure regulator guarantees optimal pressure conditions, especially in blow guns. The pressure regulator is inserted into the compressed air line. Fits onto any 1/4"" thread and maintains the pressure at optimum, thus helping to reduce the costs for energy. Tamper-proof.

"
Čas dobave: Predvidoma 3 - 5 dni
31,70 €
Primerjaj z ostalimi
Šifra Delovni tlak (prednastavitev) [bar] Zaloga Cena Nakup Natisni
101507RIE 4
Čas dobave: Predvidoma 3 - 5 dni
31,70 € Natisni
101506RIE 2
Čas dobave: Predvidoma 3 - 5 dni
31,70 € Natisni
101508RIE 6
Čas dobave: Predvidoma 3 - 5 dni
31,70 € Natisni

Opis

Mini pressure regulator, G 1/4 ET / ET, Working pressure (pre-set) 6 bar, PN max. 12 bar

"

This preset pressure regulator guarantees optimal pressure conditions, especially in blow guns. The pressure regulator is inserted into the compressed air line. Fits onto any 1/4"" thread and maintains the pressure at optimum, thus helping to reduce the costs for energy. Tamper-proof.

"

Tehnični podatki in specifikacije

Navoj G 1/4 ET/ET
Max. vhodni tlak [bar] 12
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 60
Ohišje Brass
Pretok 0 - 400 l/min
Vzmet Stainless steel
Delovni tlak (prednastavitev) [bar] 6

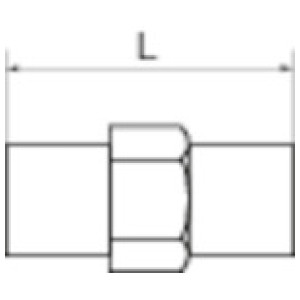

L [mm] 24.0
