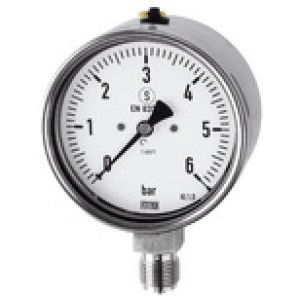

Manometer, CrNi jeklena varnostna verzija, G 1/2, 0-10 bar, Ø 100
SKU: 102466RIE
EAN: 9030654
Pressure gauge, CrNi steel, Safety design, Connection radial bottom, G 1/2, Goods class 1.0, Measurement range 0-10 bar, Ø 100
Bourdon-tube pressure gauge (safety housing), CrNi steel type, with solid baffle wall and blow-out (safety housing).
Suitable for gaseous or liquid, corrosive and crystallising media which do not have high viscosity, also in corrosive atmosphere.
Opis
Pressure gauge, CrNi steel, Safety design, Connection radial bottom, G 1/2, Goods class 1.0, Measurement range 0-10 bar, Ø 100
Bourdon-tube pressure gauge (safety housing), CrNi steel type, with solid baffle wall and blow-out (safety housing).
Suitable for gaseous or liquid, corrosive and crystallising media which do not have high viscosity, also in corrosive atmosphere.
Tehnični podatki in specifikacije
Povezava | G 1/2 |
Položaj povezave | radial on bottom |
Premer [mm] | 100 |
Vrsta | 232.30 |
Razred točnosti | 1.0 |
Min. temperatura medija [°C] | -40 |
Max. temperatura medija [°C] | 200 |
Min. sobna temperatura [°C] | -40 |
Max. sobna temperatura [°C] | 60 |
Material | CrNi steel |
Prednje steklo | Laminated safety glass |
Merilno območje max. bar | 10 |
Stopnja rasti na območju skale - bar [bar] | 0.2 |
Spodnja/Zgornja meja območja | Positive pressure |
Material Prozessanschluss | CrNi steel |
