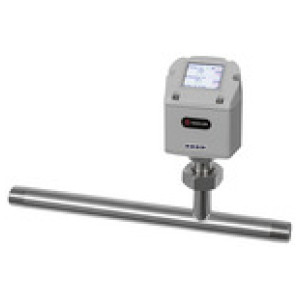

Merilnik pretoka, DN 32, R 1 1/4, 0.7 - 530 m³/h
SKU: 135874RIE
EAN: 4047322501156
Flowmeter incl. measurement section with threaded connection R 1 1/4, DN 32, Measuring range 0.7 - 530 m³/h, PN max. 16 bar
Calorimetric measurement system for monitoring changes in flow and consumption as well as for leak
and energy efficiency measurements. No additional pressure or temperature compensation is necessary.
All measured values are recorded digitally, making very rapid, high-precision measurement possible.
High measurement accuracy due to defined measurement section.
- Display: Current consumption in l/min, m³/hr, etc. and total consumption (meter reading) in m³, l, etc.
- Total consumption (meter reading) can be reset to “zero” with keypad
- Display can pivot 180°, measuring device can be unscrewed
- Measured quantities: m³/hr, l/min (1000 mbar, 20 °C) for compressed air or
Nm³/h, Nl/min (1013 mbar, 0 °C) for gases
- Units: m³/hr, m³/min, l/min, etc. can be selected with keypad
- Gas types: Compressed air (= standard),
other gas types such as nitrogen, argon, CO2, etc. can be selected with hand-held measurement unit
- Accuracy: ± 1.5% of measured value
- Digital output: RS 485 interface, Modbus RTU for connecting to energy management systems,
building management systems, etc.
- Housing material: Polycarbonate (IP65)
- Measurement section material: Stainless steel 1.4301
Not included in delivery:
- Wall power supply
- Portable hand-held measurement unit with mobile data logger
Obrestno financiranje
- 100 € + 50,91 € x 48 mesecev
- 100 € + 65,27 € x 36 mesecev
- 100 € + 94,10 € x 24 mesecev
- 100 € + 180,77 € x 12 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. merilno območje | DN | I.D. cevi [mm] | Max. merilno območje | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 135871RIE | R 1/2 | 0.2 m³/h | 15 | 16.1 | 90 m³/h | 300.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.526,59 € |  | |
| 135875RIE | R 1 1/2 | 1.0 m³/h | 40 | 41.9 | 730 m³/h | 475.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.986,11 € | | |
| 135876RIE | R 2 | 2.0 m³/h | 50 | 53.1 | 1195 m³/h | 475.0 | Čas dobave: Predvidoma 3 - 5 dni | 2.776,28 € | | |
| 135870RIE | R 1/4 | 0.8 l/min | 8 | 8.9 | 90 l/min | 194.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.526,59 € | | |
| 135873RIE | R 1 | 0.5 m³/h | 25 | 27.3 | 290 m³/h | 475.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.648,09 € | | |
| 135872RIE | R 3/4 | 0.3 m³/h | 20 | 21.7 | 170 m³/h | 475.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.608,31 € | | |
| 135874RIE | R 1 1/4 | 0.7 m³/h | 32 | 36 | 530 m³/h | 475.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.986,11 € | |
Opis
Flowmeter incl. measurement section with threaded connection R 1 1/4, DN 32, Measuring range 0.7 - 530 m³/h, PN max. 16 bar
Calorimetric measurement system for monitoring changes in flow and consumption as well as for leak
and energy efficiency measurements. No additional pressure or temperature compensation is necessary.
All measured values are recorded digitally, making very rapid, high-precision measurement possible.
High measurement accuracy due to defined measurement section.
- Display: Current consumption in l/min, m³/hr, etc. and total consumption (meter reading) in m³, l, etc.
- Total consumption (meter reading) can be reset to “zero” with keypad
- Display can pivot 180°, measuring device can be unscrewed
- Measured quantities: m³/hr, l/min (1000 mbar, 20 °C) for compressed air or
Nm³/h, Nl/min (1013 mbar, 0 °C) for gases
- Units: m³/hr, m³/min, l/min, etc. can be selected with keypad
- Gas types: Compressed air (= standard),
other gas types such as nitrogen, argon, CO2, etc. can be selected with hand-held measurement unit
- Accuracy: ± 1.5% of measured value
- Digital output: RS 485 interface, Modbus RTU for connecting to energy management systems,
building management systems, etc.
- Housing material: Polycarbonate (IP65)
- Measurement section material: Stainless steel 1.4301
Not included in delivery:
- Wall power supply
- Portable hand-held measurement unit with mobile data logger
Tehnični podatki in specifikacije
| DN | 32 |
| Max. obratovalni tlak [bar] | 16 |
| Navoj | R 1 1/4 |
| Min. temperaturno območje [°C] | -30 |
| Max. temperaturno območje [°C] | 80 |
| Izhodni volumski pretok | Analogue 4 to 20 mA, pulse output (galvanically separated) |
| I.D. cevi [mm] | 36 |
| Min. merilno območje | 0.7 m³/h |
| Max. merilno območje | 530 m³/h |

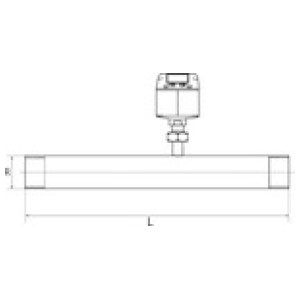

| L [mm] | 475.0 |

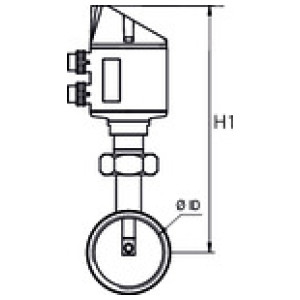

| H1 [mm] | 165.7 |
| Merilni sistem | Calorimetric measurement |
| Srednje | Compressed air, neutral gases |
| Operativna napetost | 24 V DC |
| Zaslon | Background lighting |
