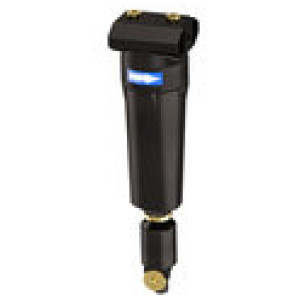

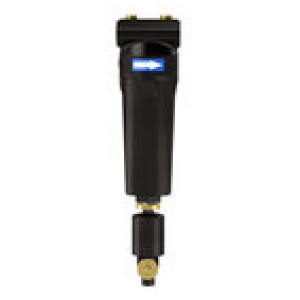

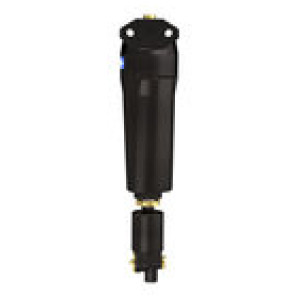

Microfilter without differential pressure gauge, 0.01 µm, G 3/4
SKU: 199814RIE
EAN: 4047322715560
Microfilter without differential pressure gauge, 0.01 µm, G 3/4, Input pressure 4 - 12 bar, Medium / ambient temp. 1.5°C to 80°C
Ideal for filtering out aerosols and solid impurities larger than 0.01 µm.
Micro-filters should always be used in conjunction with a pre-filter.
Ni na zalogi
Povpraševanje
Microfilter without differential pressure gauge, 0.01 µm, G 3/4
Element filtra: Borosilicate (with glass-fibre material and foam plastic)
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0.1 bar
Navoj: G 3/4
Ohišje: Aluminium
Posoda filtra: Aluminium
Učinkovitost [%]: 99.99
A [mm]: 104.0
D [mm]: 399.0
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0.1 bar
Navoj: G 3/4
Ohišje: Aluminium
Posoda filtra: Aluminium
Učinkovitost [%]: 99.99
A [mm]: 104.0
D [mm]: 399.0
| Šifra | Navoj | C [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 199810RIE | G 3/8 | 23.5 | 80.0 | 327.0 | 1000 | Ni na zalogi | ? | Povpraševanje |  |
| 199812RIE | G 1/2 | 28.0 | 104.0 | 399.0 | 1500 | Ni na zalogi | ? | Povpraševanje | |
| 199808RIE | G 1/4 | 23.5 | 80.0 | 327.0 | 583 | Ni na zalogi | ? | Povpraševanje | |
| 199814RIE | G 3/4 | 28.0 | 104.0 | 399.0 | 3666 | Ni na zalogi | ? | Povpraševanje | |
Opis
Microfilter without differential pressure gauge, 0.01 µm, G 3/4, Input pressure 4 - 12 bar, Medium / ambient temp. 1.5°C to 80°C
Ideal for filtering out aerosols and solid impurities larger than 0.01 µm.
Micro-filters should always be used in conjunction with a pre-filter.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 4 |
| Ohišje | Aluminium |
| Element filtra | Borosilicate (with glass-fibre material and foam plastic) |
| Rang filtra [µm] | 0.01 |
| Posoda filtra | Aluminium |
| Min. temperatura medija [°C] | 1.5 |
| Max. temperatura medija [°C] | 80 |
| Min. sobna temperatura [°C] | 1.5 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 3666 |
| A [mm] | 104.0 |
| C [mm] | 28.0 |
| D [mm] | 399.0 |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0.1 bar |
| Učinkovitost [%] | 99.99 |
| Ločevanje delcev [µm] | 0.01 |
| Vsebnost olja v ostanku [mg/m³] | 0.01 |
