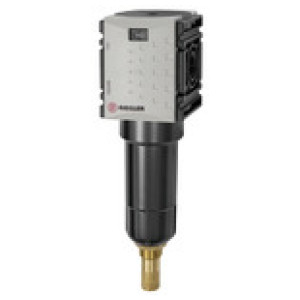

MikroFilter »FUTURA-mali« s kovinsko posodo, Velikost 0, G 1/4
SKU: 142452RIE
EAN: 4047322556774
Microfilter »FUTURA-mini«, Metal container, 0.01 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10°C to 50°C, Fully-autom.
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
MikroFilter »FUTURA-mali« s kovinsko posodo, Velikost 0, G 1/4
Element filtra: Borosilicate glass fibre
Ločevanje prahu: > 0.01 µm 99.999 %
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 0.1 bar
Navoj: G 1/4
Odtok kondenzata: Fully-automatic
Ohišje: PA66 GF60
Posoda: Metal container
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
Vsebnost olja v ostanku [mg/m³]: < 0.01
B [mm]: 160.0
Ločevanje prahu: > 0.01 µm 99.999 %
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 0.1 bar
Navoj: G 1/4
Odtok kondenzata: Fully-automatic
Ohišje: PA66 GF60
Posoda: Metal container
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
Vsebnost olja v ostanku [mg/m³]: < 0.01
B [mm]: 160.0
| Šifra | Odtok kondenzata | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 142452RIE | Fully-automatic | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 142451RIE | Semi-automatic | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Microfilter »FUTURA-mini«, Metal container, 0.01 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10°C to 50°C, Fully-autom.
Micro-filters in modern design for compliance with strict compressed air purity requirements.
Micro-filters are used to separate solid oil, water and solid impurities as small as 0.01 µm from compressed air and gases.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Element filtra | Borosilicate glass fibre |
| Rang filtra [µm] | 0.01 |
| Pretok [l/min] | 190 |
| Posoda | Metal container |

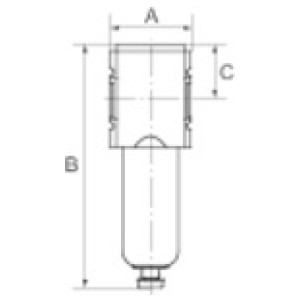

| A [mm] | 43.0 |
| B [mm] | 160.0 |
| C [mm] | 27.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 0.1 bar |
| Vsebnost olja v ostanku [mg/m³] | < 0.01 |
| Tesnilo | NBR |
| Odtok kondenzata | Fully-automatic |
| Ločevanje prahu | > 0.01 µm 99.999 % |
