MikroFilter »multifix-mali«PC zbir.0.01 µmVel. 0G 1/8
SKU: 100372RIE
EAN: 4047322345347

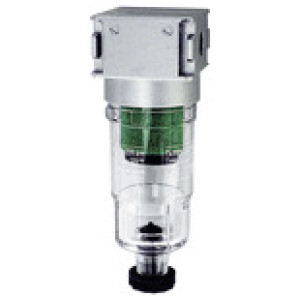

Microfilter »multifix-mini« with PC container, 0.01 µm, Size 0, G 1/8, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
For filtering out solid impurities larger than 0.01 µm.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
MikroFilter »multifix-mali«PC zbir.0.01 µmVel. 0G 1/8
Element filtra: Borosilicate-POM
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.1 bar
Navoj: G 1/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Učinkovitost [%]: 99.999
D [mm]: 102.5
B [mm]: 114.8
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 0.1 bar
Navoj: G 1/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Učinkovitost [%]: 99.999
D [mm]: 102.5
B [mm]: 114.8
| Šifra | Navoj | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 100372RIE | G 1/8 | 102.5 | 114.8 | 230 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100373RIE | G 1/4 | 125.8 | 138.1 | 450 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Microfilter »multifix-mini« with PC container, 0.01 µm, Size 0, G 1/8, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
For filtering out solid impurities larger than 0.01 µm.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 16 |
| Tesnilo | NBR |
| Element filtra | Borosilicate-POM |
| Rang filtra [µm] | 0.01 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 230 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Posoda | Polycarbonate container |

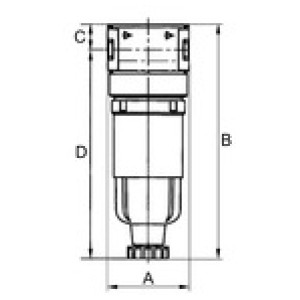

| A [mm] | 40.0 |
| B [mm] | 114.8 |
| C [mm] | 12.3 |
| D [mm] | 102.5 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.1 bar |
| Vsebnost olja v ostanku [mg/m³] | 0.01 |
| Odtok kondenzata | Semi-automatic |
| Učinkovitost [%] | 99.999 |
