MikroFilter »variobloc« z PC zbir.0.01 µmVel.2,G 1/2
SKU: 100685RIE
EAN: 4047322169035

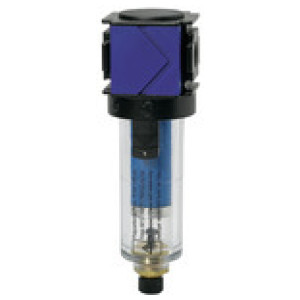

Microfilter »variobloc« with PC container, 0.01 µm, Size 2, G 1/2, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Borosilicate filter for all applications where compliance with strict compressed air purity requirements is vital.
As the second stage downstream of the standard filter, the micro-filter removes 99.999 % of even the finest remaining particles from water, oil and dirt with practically zero residues (filter rating: 0.01 µm).

Obrestno financiranje
- 12,63 € x 12 mesecev
- 24,71 € x 6 mesecev
- 48,88 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
100684RIE | G 3/8 | 1 | 22.0 | 48.0 | 155.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 103,70 € | | |
100683RIE | G 1/4 | 1 | 22.0 | 48.0 | 155.0 | 370 | Čas dobave: Predvidoma 3 - 5 dni | 94,68 € | | |
100686RIE | G 3/4 | 2 | 26.0 | 70.0 | 202.0 | 1100 | Čas dobave: Predvidoma 3 - 5 dni | 134,88 € | | |
100687RIE | G 1 | 2 | 26.0 | 124.0 | 202.0 | 1100 | Čas dobave: Predvidoma 3 - 5 dni | 186,88 € | | |
100685RIE | G 1/2 | 2 | 26.0 | 70.0 | 202.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 134,88 € | |
Opis
Microfilter »variobloc« with PC container, 0.01 µm, Size 2, G 1/2, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Borosilicate filter for all applications where compliance with strict compressed air purity requirements is vital.
As the second stage downstream of the standard filter, the micro-filter removes 99.999 % of even the finest remaining particles from water, oil and dirt with practically zero residues (filter rating: 0.01 µm).
Tehnični podatki in specifikacije
Navoj | G 1/2 |
Max. vhodni tlak [bar] | 16 |
Velikost | 2 |
Max. temperatura medija [°C] | 50 |
Max. sobna temperatura [°C] | 50 |
Pretok [l/min] | 1000 |
Posoda | Polycarbonate container |
A [mm] | 70.0 |
B [mm] | 202.0 |
C [mm] | 26.0 |
Serija | variobloc |
Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,1 bar |
Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
Rang filtra [µm] | 0.01 |
Učinkovitost [%] | 99.999 |
