MikroFilter »variobloc«Zašč. kletka0.01 µmVel.1,G 3/8
SKU: 124812RIE
EAN: 4047322397155

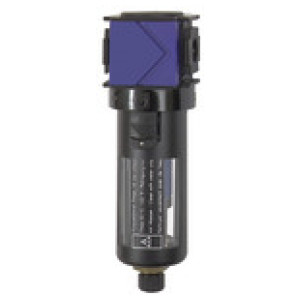

Microfilter »variobloc« with PC container and protective cage, 0.01 µm, Size 1, G 3/8, Input pressure max. 16 bar, Temp. max. 50°C
Borosilicate filter for all applications where compliance with strict compressed air purity requirements is vital.
As the second stage downstream of the standard filter, the micro-filter removes 99.999 % of even the finest remaining particles from water, oil and dirt with practically zero residues (filter rating: 0.01 µm).
Obrestno financiranje
- 12,16 € x 12 mesecev
- 23,80 € x 6 mesecev
- 47,06 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
124815RIE | G 1 | 2 | 26.0 | 124.0 | 202.0 | 1100 | Čas dobave: Predvidoma 3 - 5 dni | 217,49 € | ||
124814RIE | G 3/4 | 2 | 26.0 | 70.0 | 202.0 | 1100 | Čas dobave: Predvidoma 3 - 5 dni | 164,65 € | ||
124813RIE | G 1/2 | 2 | 26.0 | 70.0 | 202.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 164,65 € | ||
124811RIE | G 1/4 | 1 | 22.0 | 48.0 | 155.0 | 370 | Čas dobave: Predvidoma 3 - 5 dni | 129,78 € | ||
124812RIE | G 3/8 | 1 | 22.0 | 48.0 | 155.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 129,78 € |
Opis
Microfilter »variobloc« with PC container and protective cage, 0.01 µm, Size 1, G 3/8, Input pressure max. 16 bar, Temp. max. 50°C
Borosilicate filter for all applications where compliance with strict compressed air purity requirements is vital.
As the second stage downstream of the standard filter, the micro-filter removes 99.999 % of even the finest remaining particles from water, oil and dirt with practically zero residues (filter rating: 0.01 µm).
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Max. temperatura medija [°C] | 50 |
Max. sobna temperatura [°C] | 50 |
Pretok [l/min] | 420 |
Posoda | Polycarbonate container with protective cage |

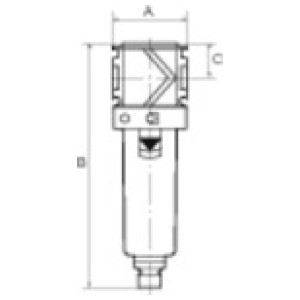

A [mm] | 48.0 |
B [mm] | 155.0 |
C [mm] | 22.0 |
Serija | variobloc |
Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,1 bar |
Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
Rang filtra [µm] | 0.01 |
Učinkovitost [%] | 99.999 |
