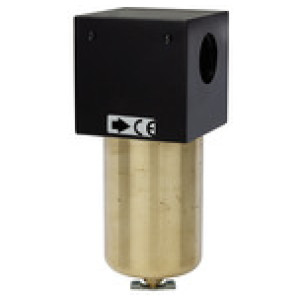

MikroFilter za visoke pritiske do 60 bar, 0.01 µm, G 3/8 slika
MikroFilter za visoke pritiske do 60 bar, 0.01 µm, G 3/8 slika
MikroFilter za visoke pritiske do 60 bar, 0.01 µm, G 3/8 slika

* slike so simbolične

MikroFilter za visoke pritiske do 60 bar, 0.01 µm, G 3/8

SKU: 101180RIE
EAN: 4047322274265

Microfilter for high pressures up to 60 bar, manual bleeder valve, 0.01 µm, G 3/8, Brass container, Operating temp. 0 °C to 90 °C

Fine filter for all applications with particularly strict compressed air purity requirements. Micro-filters should always be used in conjunction with a standard filter connected upstream to trap coarse impurities and protect the micro-filter inserts.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj C [mm] A [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
101182RIE G 3/4 29.0 92.0 196.0 2300
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
101180RIE G 3/8 25.0 73.0 187.0 2000
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
101181RIE G 1/2 25.0 65.0 187.0 2000
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
101183RIE G 1 29.0 80.0 196.0 2300
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Microfilter for high pressures up to 60 bar, manual bleeder valve, 0.01 µm, G 3/8, Brass container, Operating temp. 0 °C to 90 °C

Fine filter for all applications with particularly strict compressed air purity requirements. Micro-filters should always be used in conjunction with a standard filter connected upstream to trap coarse impurities and protect the micro-filter inserts.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 60
Max. delovna temperatura [°C] 90
Ohišje Aluminium
Rang filtra [µm] 0.01
Pretok [l/min] 2000
Posoda Brass
A [mm] 73.0
B [mm] 187.0
C [mm] 25.0
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 0.5 bar
Tesnilo NBR
Element filtra Borosilicate
Učinkovitost [%] 99.9999
