* slike so simbolične

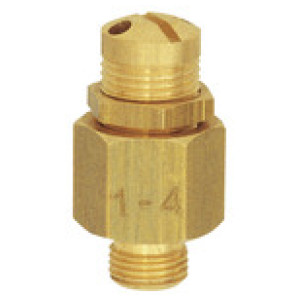

Mini izpus.ventil, med., G 1/4, vkl. prit. 6 - 12 bar
SKU: 103911RIE
EAN: 4047322035118
Mini bleeder valve, Brass, not component checked, Operating temp. -20°C to 180°C, PN 0.5-60 bar, G 1/4, Trigger pressure 6-12 bar
Manual adjustment of the blow-off pressure (lock nut).
For compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam.
Šifra | Min. nastavljeni tlak [bar] | Max. nastavljeni tlak [bar] | Hitrost izpiranja max. [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
103913RIE | 16 | 32 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103910RIE | 3 | 7 | 350 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103908RIE | 0.5 | 1 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103909RIE | 1 | 4 | 200 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103914RIE | 30 | 60 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103912RIE | 10 | 18 | 870 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | ||
103911RIE | 6 | 12 | 650 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € |
Opis
Mini bleeder valve, Brass, not component checked, Operating temp. -20°C to 180°C, PN 0.5-60 bar, G 1/4, Trigger pressure 6-12 bar
Manual adjustment of the blow-off pressure (lock nut).
For compressed air and non-toxic, non-flammable gases, cannot be used for liquids due to free blow-off, not suitable for steam.
Tehnični podatki in specifikacije
Min. obratovalni tlak [bar] | 0.5 |
Max. obratovalni tlak [bar] | 60 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 180 |
Tesnilo | FKM |
Navoj | G 1/4 |
Min. nastavljeni tlak [bar] | 6 |

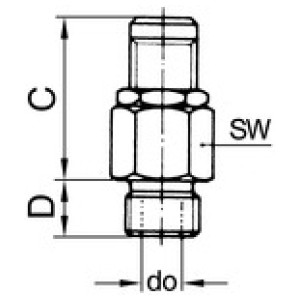

a/f [mm] | 16 |
narediti [mm] | 3.0 |
Hitrost izpiranja max. [l/min] | 650 |
Max. nastavljeni tlak [bar] | 12 |
C [mm] | 27.0 |
D [mm] | 7.0 |
