* slike so simbolične

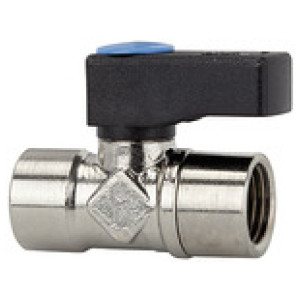

Mini krog. ventil, vrtlj. ročica, nikljana med., G 1/8 IT
SKU: 103319RIE
EAN: 4047322278706
Mini ball valve, Rotating handle, nickel-plated brass, Medium/ambient temperature -10 °C to 80 °C, G 1/8 IT, PN max. 10 bar
Čas dobave: Predvidoma 3 - 5 dni
9,16 €
| Šifra | Navoj | Standardni navoj | DN | a/f [mm] | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103321RIE | G 3/8 IT | G thread acc. to DIN EN ISO 228-1 | 8 | 17 | 24.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,04 € |  | |
| 103322RIE | G 1/2 IT | G thread acc. to DIN EN ISO 228-1 | 10 | 21 | 27.0 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,49 € | | |
| 103324RIE | G 1/4 IT / R 1/4 ET | G thread acc. to DIN EN ISO 228-1, R thread acc. to ISO 7-1 | 6 | 15 | 23.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,69 € | | |
| 103320RIE | G 1/4 IT | G thread acc. to DIN EN ISO 228-1 | 6 | 15 | 23.0 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,69 € | | |
| 103325RIE | G 3/8 IT / R 3/8 ET | G thread acc. to DIN EN ISO 228-1, R thread acc. to ISO 7-1 | 8 | 17 | 24.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,04 € | | |
| 103323RIE | G 1/8 IT / R 1/8 ET | G thread acc. to DIN EN ISO 228-1, R thread acc. to ISO 7-1 | 6 | 15 | 23.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,16 € | | |
| 103326RIE | G 1/2 IT / R 1/2 ET | G thread acc. to DIN EN ISO 228-1, R thread acc. to ISO 7-1 | 10 | 21 | 27.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,49 € | | |
| 103319RIE | G 1/8 IT | G thread acc. to DIN EN ISO 228-1 | 6 | 15 | 23.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,16 € | |
Opis
Mini ball valve, Rotating handle, nickel-plated brass, Medium/ambient temperature -10 °C to 80 °C, G 1/8 IT, PN max. 10 bar
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 10 |
| Krogla | Nickel-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR |
| Vrtljiva ročica | Plastic |
| Material navojev | Nickel-plated brass |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 80 |
| Navoj | G 1/8 IT |
| DN | 6 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |

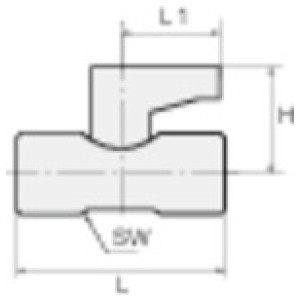

| L [mm] | 34.0 |
| L1 [mm] | 24.0 |
| H [mm] | 23.0 |
| a/f [mm] | 15 |
