Moški del koleno
 Moški del koleno

* slike so simbolične

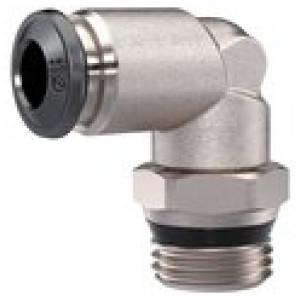

Moški del koleno "univerzalna kratki« vrtljivi 1/4, cev 6

SKU: 153294RIE
EAN: 4047322608046

Male branch elbow »universal short«, rotating, 1/4, hose-Ø 6, taper seat, Working pressure -0,99 to 20 bar, nickel-plated brass

The quick-connect fittings of the »universal short« series are true to their name and are used for the quick and simple connection of hoses. The conical sealing threads off a high degree of flexibility, as it is compatible with both conical and cylindrical threads. Thus the quick-connect fitting can be combined with a wide variety of thread types (BSPP, BSPT, NPT, NPTF, PT, PF) of standards ISO 7.1 and ISO 228. Shorter assembly ties result from the reduced thread length. The smaller hole spacing, resulting from the reduction of the width across flats, enables installation in very tight spaces. This saves time and space.

The complete sealing is also guaranteed on uneven, for example inclined, concave or convex surfaces, and with differing radii and chamfers. The special geometry of the seal enables vacuum applications.

Areas of application: Pneumatic automation, automotive industry, textile and packaging industry, compressed air circuits, vacuum applications.

Čas dobave 3 - 5 dni
6,26 €
Primerjaj z ostalimi

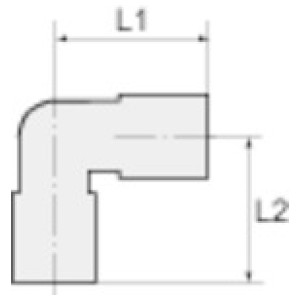

Šifra Navoj Za cevi O.D. [mm] a/f [mm] L2 [mm] L1 [mm] Zaloga Cena Nakup Natisni
153298RIE 03. Aug 10 17 24.5 26.5
Čas dobave 3 - 5 dni
9,81 € Natisni
153293RIE 01. Aug 8 13 24.0 22.5
Čas dobave 3 - 5 dni
6,71 € Natisni
153296RIE 01. Apr 10 16 26.5 26.5
Čas dobave 3 - 5 dni
8,75 € Natisni
153294RIE 01. Apr 6 15 23.0 21.0
Čas dobave 3 - 5 dni
6,26 € Natisni
153300RIE 01. Feb 10 21 27.0 26.5
Čas dobave 3 - 5 dni
11,36 € Natisni
153295RIE 01. Apr 8 15 24.0 22.5
Čas dobave 3 - 5 dni
7,02 € Natisni
153292RIE 01. Aug 6 13 21.5 21.0
Čas dobave 3 - 5 dni
5,82 € Natisni
153297RIE 03. Aug 8 17 24.5 22.5
Čas dobave 3 - 5 dni
8,99 € Natisni
153299RIE 01. Feb 8 21 27.0 22.5
Čas dobave 3 - 5 dni
9,76 € Natisni

Opis

Male branch elbow »universal short«, rotating, 1/4, hose-Ø 6, taper seat, Working pressure -0,99 to 20 bar, nickel-plated brass

The quick-connect fittings of the »universal short« series are true to their name and are used for the quick and simple connection of hoses. The conical sealing threads off a high degree of flexibility, as it is compatible with both conical and cylindrical threads. Thus the quick-connect fitting can be combined with a wide variety of thread types (BSPP, BSPT, NPT, NPTF, PT, PF) of standards ISO 7.1 and ISO 228. Shorter assembly ties result from the reduced thread length. The smaller hole spacing, resulting from the reduction of the width across flats, enables installation in very tight spaces. This saves time and space.

The complete sealing is also guaranteed on uneven, for example inclined, concave or convex surfaces, and with differing radii and chamfers. The special geometry of the seal enables vacuum applications.

Areas of application: Pneumatic automation, automotive industry, textile and packaging industry, compressed air circuits, vacuum applications.

Tehnični podatki in specifikacije

Serija universal short
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 20
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Tesnilo NBR
Priporočena cev PA, PU, PTFE
Vpenjalo Stainless steel
Rokav POM
Navoj 01. Apr
Za cevi O.D. [mm] 6
L1 [mm] 21.0
L2 [mm] 23.0
a/f [mm] 15
Material Nickel-plated brass
