Multi-dist. Blue serija
Multi-dist. Blue serija

* slike so simbolične

Multi-dist. Blue serija", 4-stransko, vrt., R 1/4

SKU: 109792RIE
EAN: 4047322389570

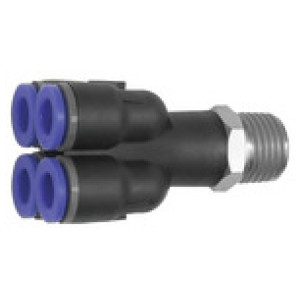

Multi-distributor »Blue Series«, 4-fold, rotating, R 1/4 o., for hose exterior Ø 6 mm, pmax short term 15bar

Push-in fittings series manufactured in plastic and nickel-plated brass.

All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

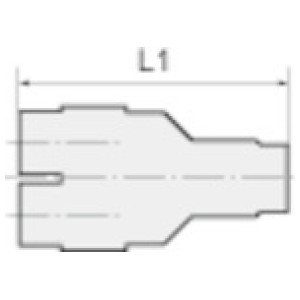

Šifra Navoj Za cevi O.D. [mm] a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
109791RIE R 1/4 4 14 45.0
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
109790RIE R 1/8 6 12 43.6
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
109789RIE R 1/8 4 10 42.0
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
109792RIE R 1/4 6 14 46.1
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Multi-distributor »Blue Series«, 4-fold, rotating, R 1/4 o., for hose exterior Ø 6 mm, pmax short term 15bar

Push-in fittings series manufactured in plastic and nickel-plated brass.

All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.

Tehnični podatki in specifikacije

Serija Blue series
Max. working pressure short term [bar] 15
Min. delovni tlak [bar] -0.95
Max. delovni tlak [bar] 10
Max. temperaturno območje [°C] 80
Min. temperaturno območje [°C] -20
Tesnilo NBR
Srednje Compressed air, neutral and safe gases and liquids
Priporočena cev PU or PA (nylon)
Rokav Plastic
Navoj R 1/4
Za cevi O.D. [mm] 6
L1 [mm] 46.1
a/f [mm] 14
Material Plastic and nickel-plated brass
