Naoljevalnik»FUTURA«Kov. pos.Kazalno okence Vel.1, G 3/8
SKU: 156651RIE
EAN: 4047322629645

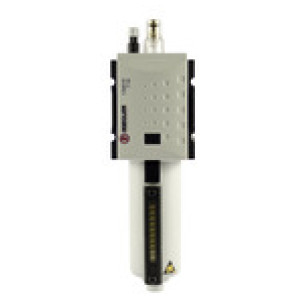

Mist oiler »FUTURA«, with metal container and viewing tube, Size 1, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Obrestno financiranje
- 14,64 € x 6 mesecev
- 28,96 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 156653RIE | G 1 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 176,44 € |  | |
| 156652RIE | G 3/4 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 176,44 € | | |
| 139514RIE | G 3/8 | 2 | 63.0 | 70.0 | 215.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 114,88 € | | |
| 139515RIE | G 1/2 | 2 | 63.0 | 70.0 | 215.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 114,88 € | | |
| 156650RIE | G 1/4 | 1 | 52.0 | 64.0 | 187.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 80,36 € | | |
| 156651RIE | G 3/8 | 1 | 52.0 | 64.0 | 187.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 80,36 € | |
Opis
Mist oiler »FUTURA«, with metal container and viewing tube, Size 1, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PC |
| Pretok [l/min] | 2750 |
| Posoda | Metal container with viewing tube |

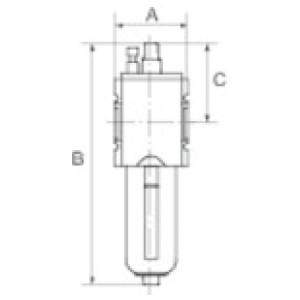

| A [mm] | 52.0 |
| B [mm] | 187.0 |
| C [mm] | 64.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
