Naoljevalnik»FUTURA«Kov. pos.Kazalno okenceVel.2,G 3/8
SKU: 139514RIE
EAN: 4047322534444

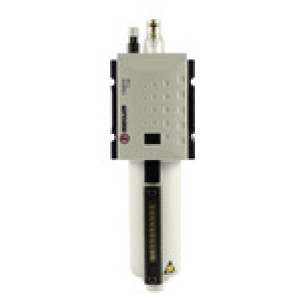

Mist oiler »FUTURA«, with metal container and viewing tube, Size 2, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Povpraševanje
Navoj: G 3/8
Ohišje: PA66 GF60
Posoda: Metal container with viewing tube
Priključni navoj: Material: Die-cast zinc
Razred olja: CL 32 acc. to DIN 51517-ISO VG 32
Serija: FUTURA
Srednje: Compressed air, neutral gases
B [mm]: 215.0
| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 156653RIE | G 1 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 156652RIE | G 3/4 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 139514RIE | G 3/8 | 2 | 63.0 | 70.0 | 215.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 139515RIE | G 1/2 | 2 | 63.0 | 70.0 | 215.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 156650RIE | G 1/4 | 1 | 52.0 | 64.0 | 187.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 156651RIE | G 3/8 | 1 | 52.0 | 64.0 | 187.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mist oiler »FUTURA«, with metal container and viewing tube, Size 2, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PC |
| Pretok [l/min] | 8000 |
| Posoda | Metal container with viewing tube |

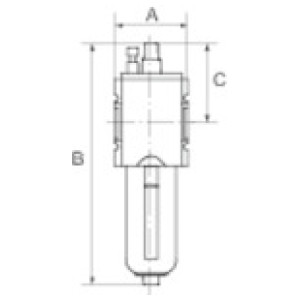

| A [mm] | 63.0 |
| B [mm] | 215.0 |
| C [mm] | 70.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
