* slike so simbolične
Naoljevalnik»FUTURA«PC zbir.Zašč. kletkaVel.1,G 3/8
SKU: 100207RIE
EAN: 4047322191807

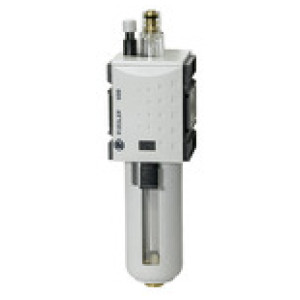

Mist oiler »FUTURA« with PC container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Povpraševanje
Navoj: G 3/8
Ohišje: PA66 GF60
Posoda: Polycarbonate container with protective cage
Priključni navoj: Material: Die-cast zinc
Razred olja: CL 32 acc. to DIN 51517-ISO VG 32
Serija: FUTURA
Srednje: Compressed air, neutral gases
B [mm]: 186.0

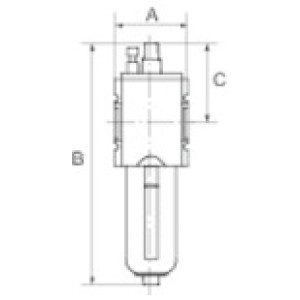

| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100206RIE | G 1/4 | 1 | 52.0 | 64.0 | 186.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100208RIE | G 3/8 | 2 | 63.0 | 70.0 | 210.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100207RIE | G 3/8 | 1 | 52.0 | 64.0 | 186.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100211RIE | G 1 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100209RIE | G 1/2 | 2 | 63.0 | 70.0 | 210.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100210RIE | G 3/4 | 4 | 85.0 | 88.0 | 271.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mist oiler »FUTURA« with PC container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Oil-mist lubricators with excellent flow rates in modern design.
These devices can be used to top up oil automatically.
A hose must be connected to the threaded nipple on the oil bowl for this purpose.
When the oil filling button on the top of the device is pressed, a Venturi nozzle opens and sucks oil into the bowl under vacuum.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PC |
| Pretok [l/min] | 2750 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 52.0 |
| B [mm] | 186.0 |
| C [mm] | 64.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
