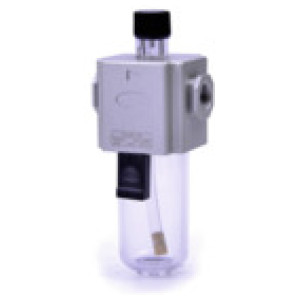

Naoljevalnik »GA-mali« PC zbir.Vel. 200, G 1/4, 0.5 - 9 bar
SKU: 178360RIE
EAN: 4047322666312
Mist oiler »GA-mini«, PC container and mounting bracket, Size 200, G 1/4, Input pressure max. 10 bar, Working pressure 0.5 - 9 bar
Proportional lubricators, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
31,06 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 178360RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 31,06 € |  | |
| 178359RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 24,97 € | |
Opis
Mist oiler »GA-mini«, PC container and mounting bracket, Size 200, G 1/4, Input pressure max. 10 bar, Working pressure 0.5 - 9 bar
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 9 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Vidna kupola | Brass/POM |
| Pretok [l/min] | 2700 |
| Posoda | Polycarbonate container |

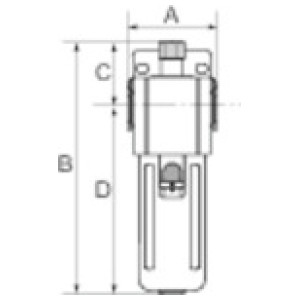

| A [mm] | 52.5 |
| B [mm] | 124.0 |
| C [mm] | 40.0 |
| D [mm] | 84.0 |
| Serija | GA-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
