Naoljevalnik »multifix-mali« s polikarbonatnim zbiralnikom, G 1/8
SKU: 100387RIE
EAN: 4047322155618

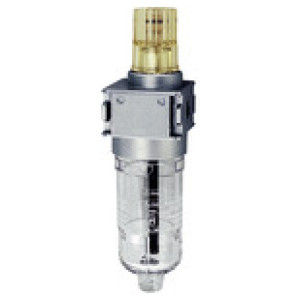

Mist oiler »multifix-mini« with polycarbonate container, G 1/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Micro-lubricators, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
29,90 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100387RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 29,90 € |  | |
| 100388RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 35,89 € | |
Opis
Mist oiler »multifix-mini« with polycarbonate container, G 1/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Micro-lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 16 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 1150 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Vidna kupola | PA |
| Posoda | Polycarbonate container |
| A [mm] | 40.0 |
| B [mm] | 145.1 |
| C [mm] | 49.6 |
| D [mm] | 95.5 |
| Serija | multifix-mini |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
