* slike so simbolične
Naoljevalnik »multifix«PC zbir.Protec. cageVel.1,G 3/8
SKU: 100557RIE
EAN: 4047322155724

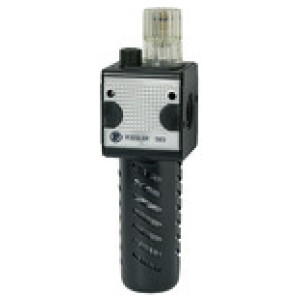

Mist oiler »multifix«, PC container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
Čas dobave 3 - 5 dni
64,53 €
ali od 11,90 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,90 € x 6 mesecev
- 23,54 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100560RIE | G 1 | Aluminium | 5 | 25 | 82.7 | 100.0 | 241.6 | 324.3 | 19000 | Čas dobave 3 - 5 dni | 232,02 € |  | |
| 100556RIE | G 1/4 | Die-cast zinc | 1 | 6 | 58.0 | 47.8 | 109.8 | 167.8 | 1900 | Čas dobave 3 - 5 dni | 64,53 € | | |
| 100557RIE | G 3/8 | Die-cast zinc | 1 | 10 | 58.0 | 47.8 | 109.8 | 167.8 | 1900 | Čas dobave 3 - 5 dni | 64,53 € | | |
| 133120RIE | G 1 | Die-cast aluminium | 4 | 25 | 86.0 | 85.0 | 182.0 | 268.0 | 14000 | Čas dobave 3 - 5 dni | 170,76 € | | |
| 100559RIE | G 3/4 | Die-cast zinc | 3 | 20 | 66.1 | 68.8 | 132.5 | 198.6 | 5000 | Čas dobave 3 - 5 dni | 95,92 € | | |
| 100558RIE | G 1/2 | Die-cast zinc | 3 | 15 | 66.1 | 68.8 | 132.5 | 198.6 | 5000 | Čas dobave 3 - 5 dni | 95,92 € | | |
| 133119RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 86.0 | 85.0 | 182.0 | 268.0 | 14000 | Čas dobave 3 - 5 dni | 170,76 € | |
Opis
Mist oiler »multifix«, PC container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 1900 |
| DN | 10 |
| Ohišje | Die-cast zinc |
| Vidna kupola | PA |
| Posoda | Polycarbonate container with protective cage |

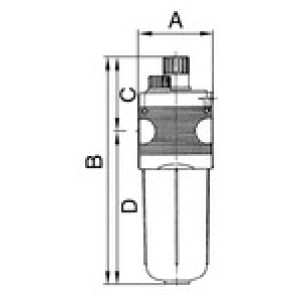

| A [mm] | 47.8 |
| B [mm] | 167.8 |
| C [mm] | 58.0 |
| D [mm] | 109.8 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
