Naoljevalnik »Stinard-mali« z PC zbiralnik, Velikost 0, G 1/4
SKU: 100791RIE
EAN: 4047322116718

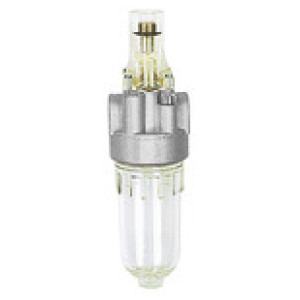

Mist oiler »Standard-mini« with PC container, Size 0, G 1/4, Input pressure max. 16 bar, Medium / ambient temperature max. 60 °C
Proportional lubricators in compact design, oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
43,18 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100791RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 43,18 € |  | |
| 100790RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 43,18 € | |
Opis
Mist oiler »Standard-mini« with PC container, Size 0, G 1/4, Input pressure max. 16 bar, Medium / ambient temperature max. 60 °C
Proportional lubricators in compact design, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 650 |
| DN | 5 |
| Vidna kupola | PA |
| Posoda | Polycarbonate container |

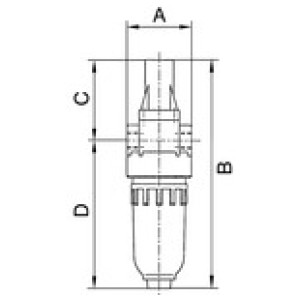

| A [mm] | 40.0 |
| B [mm] | 144.5 |
| C [mm] | 49.5 |
| D [mm] | 95.0 |
| Serija | Standard-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
