* slike so simbolične

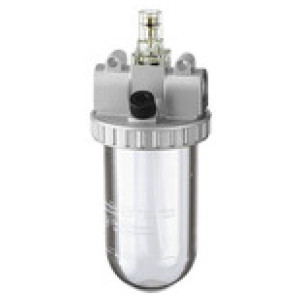

Naoljevalnik »Stinard« s polikarbonatnim zbir.Vel.1,G 1/4
SKU: 101014RIE
EAN: 4047322116756
Mist oiler »Standard« with polycarbonate container, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
Čas dobave 3 - 5 dni
46,99 €

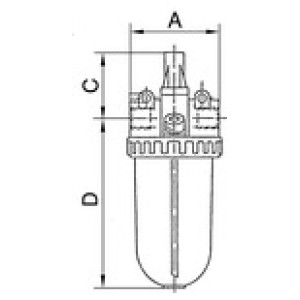

| Šifra | Navoj | Velikost | DN | C [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 101020RIE | G 1 1/4 | 4 | 40 | 70.0 | 137.0 | 232.0 | 9000 | Čas dobave 3 - 5 dni | 283,39 € |  | |
| 101018RIE | G 3/4 | 3 | 20 | 58.0 | 102.0 | 160.0 | 9000 | Čas dobave 3 - 5 dni | 132,96 € | | |
| 101016RIE | G 3/8 | 2 | 10 | 51.0 | 70.0 | 129.5 | 2400 | Čas dobave 3 - 5 dni | 68,86 € | | |
| 101014RIE | G 1/4 | 1 | 6 | 51.0 | 50.0 | 118.0 | 1200 | Čas dobave 3 - 5 dni | 46,99 € | | |
| 101017RIE | G 1/2 | 3 | 15 | 55.0 | 79.0 | 157.0 | 4000 | Čas dobave 3 - 5 dni | 75,49 € | | |
| 101015RIE | G 3/8 | 1 | 6 | 51.0 | 50.0 | 118.0 | 1200 | Čas dobave 3 - 5 dni | 46,99 € | | |
| 101021RIE | G 1 1/2 | 4 | 45 | 70.0 | 125.0 | 232.0 | 9000 | Čas dobave 3 - 5 dni | 280,64 € | | |
| 101019RIE | G 1 | 3 | 25 | 58.0 | 90.0 | 160.0 | 9000 | Čas dobave 3 - 5 dni | 131,65 € | |
Opis
Mist oiler »Standard« with polycarbonate container, Size 1, G 1/4, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 1200 |
| DN | 6 |
| Vidna kupola | PA |
| Posoda | Polycarbonate container |
| A [mm] | 50.0 |
| C [mm] | 51.0 |
| D [mm] | 118.0 |
| Serija | Standard |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
