Naoljevalnik »variobloc«PC zbir.Protec. cageVel. 2G 3/4
SKU: 124819RIE
EAN: 4047322398213

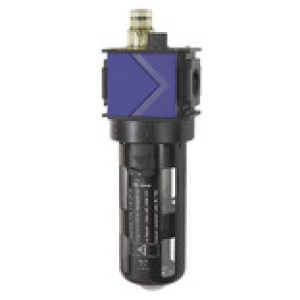

Mist oiler »variobloc«, PC container, protective cage, Size 2, G 3/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50°C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 10,29 € x 12 mesecev
- 20,13 € x 6 mesecev
- 39,82 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

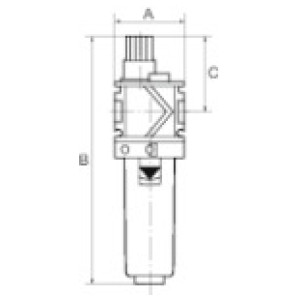

| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 124817RIE | G 3/8 | 1 | 48.0 | 52.0 | 171.0 | 4400 | Čas dobave 3 - 5 dni | 77,65 € |  | |
| 124819RIE | G 3/4 | 2 | 70.0 | 57.0 | 224.0 | 7500 | Čas dobave 3 - 5 dni | 109,82 € | | |
| 124816RIE | G 1/4 | 1 | 48.0 | 52.0 | 171.0 | 3400 | Čas dobave 3 - 5 dni | 77,65 € | | |
| 124820RIE | G 1 | 2 | 124.0 | 57.0 | 224.0 | 7500 | Čas dobave 3 - 5 dni | 162,67 € | | |
| 124818RIE | G 1/2 | 2 | 70.0 | 57.0 | 224.0 | 4600 | Čas dobave 3 - 5 dni | 109,82 € | |
Opis
Mist oiler »variobloc«, PC container, protective cage, Size 2, G 3/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50°C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PA |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 7500 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 70.0 |
| B [mm] | 224.0 |
| C [mm] | 57.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
