Naoljevalnik »variobloc« s kovinsko posodo, Velikost 1, G 1/4
SKU: 125335RIE
EAN: 4047322169196

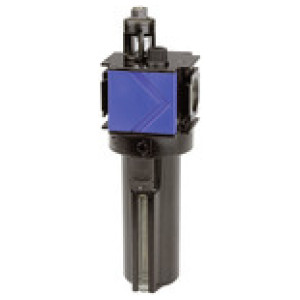

Mist oiler »variobloc« with metal container incl. viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Medium temp. max. 80°C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 10,20 € x 12 mesecev
- 19,95 € x 6 mesecev
- 39,46 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 125337RIE | G 1/2 | 2 | 65.0 | 70.0 | 224.0 | 4600 | Čas dobave 3 - 5 dni | 146,42 € |  | |
| 125339RIE | G 1 | 2 | 65.0 | 124.0 | 224.0 | 7500 | Čas dobave 3 - 5 dni | 198,66 € | | |
| 125336RIE | G 3/8 | 1 | 60.0 | 48.0 | 180.0 | 4400 | Čas dobave 3 - 5 dni | 108,56 € | | |
| 125335RIE | G 1/4 | 1 | 60.0 | 48.0 | 180.0 | 3400 | Čas dobave 3 - 5 dni | 108,56 € | | |
| 125338RIE | G 3/4 | 2 | 65.0 | 70.0 | 224.0 | 7500 | Čas dobave 3 - 5 dni | 146,42 € | |
Opis
Mist oiler »variobloc« with metal container incl. viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Medium temp. max. 80°C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 1 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PA |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 3400 |
| Posoda | Metal container with viewing tube |

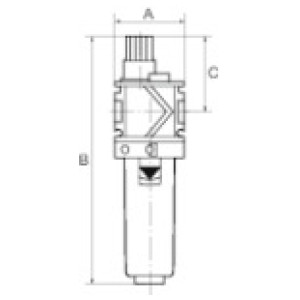

| A [mm] | 48.0 |
| B [mm] | 180.0 |
| C [mm] | 60.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
