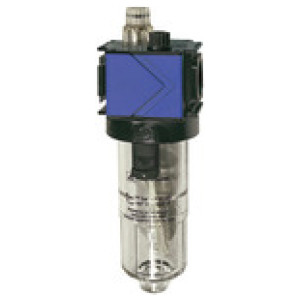

Naoljevalnik »variobloc« z PC zbiralnik, Velikost 2, G 3/4
SKU: 100706RIE
EAN: 4047322169240
Mist oiler »variobloc« with polycarbonate container, Size 2, G 3/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Naoljevalnik »variobloc« z PC zbiralnik, Velikost 2, G 3/4
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/4
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Razred olja: CL 32 acc. to DIN 51517-ISO VG 32
Serija: variobloc
B [mm]: 224.0
Navoj: G 3/4
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Razred olja: CL 32 acc. to DIN 51517-ISO VG 32
Serija: variobloc
B [mm]: 224.0

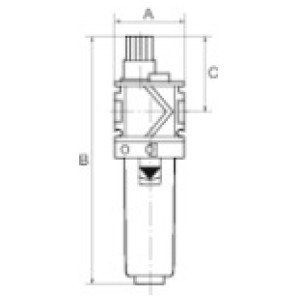

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100706RIE | G 3/4 | 2 | 57.0 | 70.0 | 224.0 | 7500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100707RIE | G 1 | 2 | 57.0 | 124.0 | 224.0 | 7500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100705RIE | G 1/2 | 2 | 57.0 | 70.0 | 224.0 | 4600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100704RIE | G 3/8 | 1 | 52.0 | 48.0 | 171.0 | 4400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100703RIE | G 1/4 | 1 | 52.0 | 48.0 | 171.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mist oiler »variobloc« with polycarbonate container, Size 2, G 3/4, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Proportional lubricators, oil can be filled under pressure.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Vidna kupola | PA |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 7500 |
| Posoda | Polycarbonate container |
| A [mm] | 70.0 |
| B [mm] | 224.0 |
| C [mm] | 57.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
