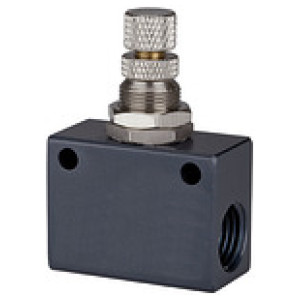

Nast. duš.ventil ASC, kvadratne oblike, Alu, G 3/8
SKU: 115508RIE
EAN: 4047322323147

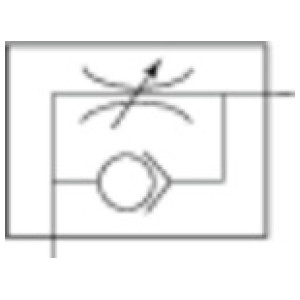

Throttle check valve »ASC«, in block shape, Aluminium, Operating temperature -20 °C do 70 °C, G 3/8, PN 0.5 - 9.5 bar
These valves are restricted in the flow direction and have free passage in the opposite direction.
Čas dobave: Predvidoma 3 - 5 dni
23,52 €

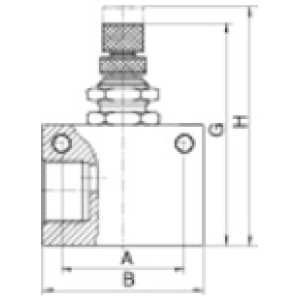

| Šifra | Navoj | A [mm] | B [mm] | G [mm] | H [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 115507RIE | G 1/4 | 26.0 | 36.0 | 50.8 | 56.3 | Čas dobave: Predvidoma 3 - 5 dni | 14,53 € |  | |
| 115506RIE | G 1/8 | 22.0 | 32.0 | 46.9 | 52.3 | Čas dobave: Predvidoma 3 - 5 dni | 12,92 € | | |
| 115509RIE | G 1/2 | 35.0 | 50.0 | 65.0 | 74.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,11 € | | |
| 115508RIE | G 3/8 | 35.0 | 50.0 | 65.0 | 74.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,52 € | |
Opis
Throttle check valve »ASC«, in block shape, Aluminium, Operating temperature -20 °C do 70 °C, G 3/8, PN 0.5 - 9.5 bar
These valves are restricted in the flow direction and have free passage in the opposite direction.
Tehnični podatki in specifikacije
| Ohišje | Aluminium |
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 9.5 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Tesnilo | NBR |
| Navoj | G 3/8 |
| Notranji deli | Aluminium/Brass |
| A [mm] | 35.0 |
| G [mm] | 65.0 |
| B [mm] | 50.0 |
| H [mm] | 74.0 |
