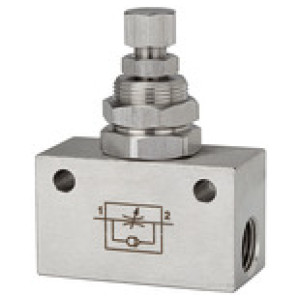

Nast. duš.ventil, kvadratne oblike, ner.jeklo, G 1/4
SKU: 103808RIE
EAN: 4047322269742
Throttle check valve, in block shape, Stainless steel 1.4404, Operating temperature 0 °C to 150 °C, G 1/4, PN max. 10 bar

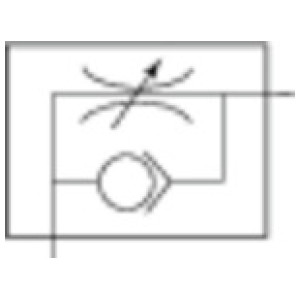

Unidirectional flow control valve, restricted in the flow direction and free passage in the opposite direction.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Nast. duš.ventil, kvadratne oblike, ner.jeklo, G 1/4
Navoj: G 1/4
Notranji deli: Stainless steel 1.4404
Ohišje: Stainless steel 1.4404
Notranji deli: Stainless steel 1.4404
Ohišje: Stainless steel 1.4404
Aktivni filtri - 0
| Šifra | Navoj | L [mm] | a/f [mm] | C [mm] | M [mm] | E [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103807RIE | G 1/8 | 4.5 | 14 | 15.0 | 20.0 | 24.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103808RIE | G 1/4 | 5.5 | 22 | 25.0 | 30.0 | 35.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 2 od 2 zapisov
Opis
Throttle check valve, in block shape, Stainless steel 1.4404, Operating temperature 0 °C to 150 °C, G 1/4, PN max. 10 bar
Unidirectional flow control valve, restricted in the flow direction and free passage in the opposite direction.
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4404 |
| Max. obratovalni tlak [bar] | 10 |
| Max. delovna temperatura [°C] | 150 |
| Tesnilo | FPM |
| Navoj | G 1/4 |
| Notranji deli | Stainless steel 1.4404 |
| E [mm] | 35.0 |
| A [mm] | 50.0 |
| M [mm] | 30.0 |
| L [mm] | 5.5 |
| a/f [mm] | 22 |
| C [mm] | 25.0 |
