Nast. duš.ventil, za dobavo zraka, navoj. priklop G3/8i.,G3/8
SKU: 106901RIE
EAN: 4047322393676

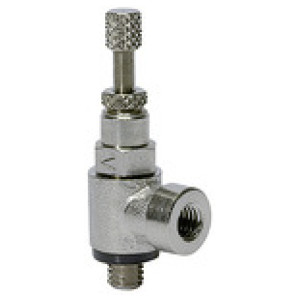

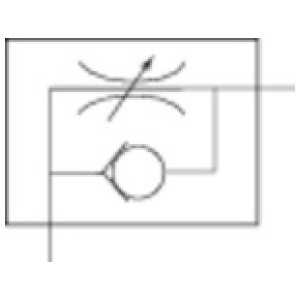

Throttle check valve, Supply air throttle (V) Threaded connection G 3/8 i., G 3/8, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The seals and lubricants used are silicone-free.
| Šifra | Navoj | Povezava | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106900RIE | G 1/4 | G 1/4 female thread | 17 | 22.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,48 € |  | |
| 106898RIE | M5 | M5 female thread | 8 | 11.5 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | 16,36 € | | |
| 106899RIE | G 1/8 | G 1/8 female thread | 14 | 16.0 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 17,81 € | | |
| 106901RIE | G 3/8 | G 3/8 female thread | 20 | 26.0 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,34 € | |
Opis
Throttle check valve, Supply air throttle (V) Threaded connection G 3/8 i., G 3/8, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The seals and lubricants used are silicone-free.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide, glass fibre-reinforced (only parts in banjo bolt construction) |
| Navoj | G 3/8 |
| Povezava | G 3/8 female thread |
| B [mm] | 63.0 |
| C [mm] | 26.0 |
| a/f [mm] | 20 |
| Telo | Nickel-plated brass |
| Silicone-free | Yes |
| Ffunkcija | Supply air throttle (V) |
| Vrsta povezave | Screw connection |
| Design | Banjo bolt construction |
