Nast. duš.ventil, za dobavo zraka, pot.i priklop 8,G1/4
SKU: 106917RIE
EAN: 4047322180504

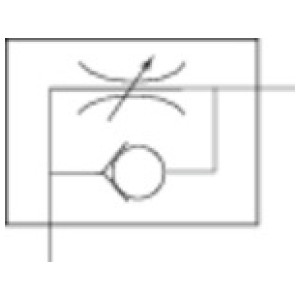

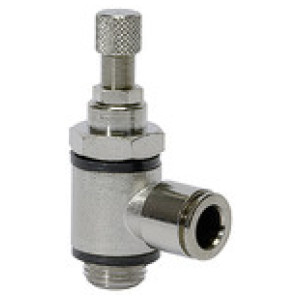

Throttle check valve, Supply air throttle (V) push-in connector hose 8, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The seals and lubricants used are silicone-free.
| Šifra | Navoj | Za cevi [mm] | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106912RIE | M5 | 6 | 8 | 21.7 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | 17,34 € |  | |
| 106914RIE | G 1/8 | 6 | 14 | 22.7 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 17,34 € | | |
| 106916RIE | G 1/4 | 6 | 17 | 24.2 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,79 € | | |
| 106913RIE | G 1/8 | 4 | 14 | 20.6 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 17,34 € | | |
| 106915RIE | G 1/8 | 8 | 14 | 23.7 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,79 € | | |
| 106918RIE | G 1/4 | 10 | 17 | 26.8 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 19,29 € | | |
| 106911RIE | M5 | 4 | 8 | 18.6 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | 17,34 € | | |
| 106917RIE | G 1/4 | 8 | 17 | 24.7 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,79 € | |
Opis
Throttle check valve, Supply air throttle (V) push-in connector hose 8, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The seals and lubricants used are silicone-free.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide, glass fibre-reinforced (only parts in banjo bolt construction) |
| Navoj | G 1/4 |
| Za cevi [mm] | 8 |
| B [mm] | 51.4 |
| C [mm] | 24.7 |
| a/f [mm] | 17 |
| Telo | Nickel-plated brass |
| Silicone-free | Yes |
| Ffunkcija | Supply air throttle (V) |
| Vrsta povezave | Plug-in connector |
| Design | Banjo bolt construction |
