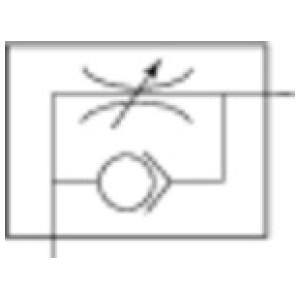

Nastavljivi dušilni ventil, z izpustom (C) G 1/2 i., G 1/2 slika

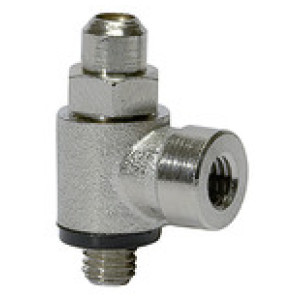

Nastavljivi dušilni ventil, z izpustom (C) G 1/2 i., G 1/2 slika

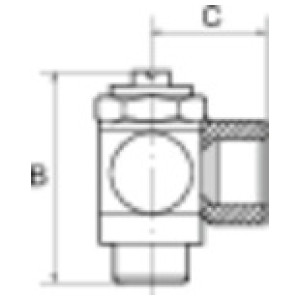

Nastavljivi dušilni ventil, z izpustom (C) G 1/2 i., G 1/2 slika

* slike so simbolične

Nastavljivi dušilni ventil, z izpustom (C) G 1/2 i., G 1/2

SKU: 106923RIE
EAN: 4047322393768

Throttle check valve, Discharge throttle (C) threaded connection G 1/2 i., G 1/2, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Čas dobave 3 - 5 dni
40,42 €
Primerjaj z ostalimi
Šifra Navoj Povezava a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
106919RIE M5 M5 female thread 8 11.5 24.5
Čas dobave 3 - 5 dni
13,18 € Natisni
106920RIE G 1/8 G 1/8 female thread 14 16.0 32.0
Čas dobave 3 - 5 dni
13,18 € Natisni
106923RIE G 1/2 G 1/2 female thread 26 32.0 61.0
Čas dobave 3 - 5 dni
40,42 € Natisni
106922RIE G 3/8 G 3/8 female thread 20 26.0 50.0
Čas dobave 3 - 5 dni
26,29 € Natisni
106921RIE G 1/4 G 1/4 female thread 17 22.0 40.0
Čas dobave 3 - 5 dni
14,75 € Natisni

Opis

Throttle check valve, Discharge throttle (C) threaded connection G 1/2 i., G 1/2, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Zarobljena tesnila Polyamide, glass fibre-reinforced (only parts in banjo bolt construction)
Navoj G 1/2
Povezava G 1/2 female thread
B [mm] 61.0
C [mm] 32.0
a/f [mm] 26
Telo Nickel-plated brass
Silicone-free Yes
Ffunkcija Discharge throttle (C)
Vrsta povezave Screw connection
Design Banjo bolt construction
