Natančen Tlačni reg.»FUTURA«Vel.1,G 3/8, 0.2 - 4 bar slika
Natančen Tlačni reg.»FUTURA«Vel.1,G 3/8, 0.2 - 4 bar slika
Natančen Tlačni reg.»FUTURA«Vel.1,G 3/8, 0.2 - 4 bar slika
Natančen Tlačni reg.»FUTURA«Vel.1,G 3/8, 0.2 - 4 bar slika

* slike so simbolične

Natančen Tlačni reg.»FUTURA«Vel.1,G 3/8, 0.2 - 4 bar

SKU: 100083RIE
EAN: 4047322191197

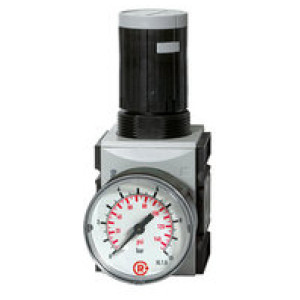

Precision pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.2 - 4 bar

Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for applications requiring an extremely accurate working pressure.

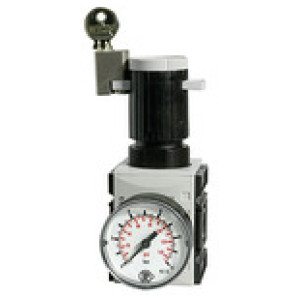

The regulator button can be latched and locked.

Čas dobave 3 - 5 dni
75,52 €
ali od 13,91 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 13,91 € x 6 mesecev
  • 27,51 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Min. krmilno območje [bar] Max. krmilno območje [bar] Velikost Zaslon manometra max. [bar] A [mm] C [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
100081RIE G 3/8 0.1 1 1 1.6 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
75,52 € Natisni
100087RIE G 3/8 0.1 2 2 2.5 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
97,12 € Natisni
156640RIE G 1/4 0.5 16 1 25 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
74,10 € Natisni
100084RIE G 3/8 0.5 8 1 10 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
75,52 € Natisni
100095RIE G 1/2 0.5 10 2 16 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
97,12 € Natisni
100082RIE G 3/8 0.1 2 1 2.5 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
75,52 € Natisni
100090RIE G 3/8 0.5 10 2 16 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
97,12 € Natisni
100083RIE G 3/8 0.2 4 1 6 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
75,52 € Natisni
100093RIE G 1/2 0.2 4 2 6 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
97,12 € Natisni
100080RIE G 1/4 0.5 10 1 16 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
75,52 € Natisni
100078RIE G 1/4 0.2 4 1 6 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
75,52 € Natisni
100091RIE G 1/2 0.1 1 2 1.6 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
97,12 € Natisni
100085RIE G 3/8 0.5 10 1 16 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
75,52 € Natisni
156641RIE G 3/8 0.5 16 1 25 52.0 96.0 129.0 2750
Čas dobave 3 - 5 dni
74,10 € Natisni
100086RIE G 3/8 0.1 1 2 1.6 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
95,31 € Natisni
100079RIE G 1/4 0.5 8 1 10 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
75,52 € Natisni
139483RIE G 1/2 0.5 16 2 25 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
95,31 € Natisni
100089RIE G 3/8 0.5 8 2 10 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
97,12 € Natisni
100092RIE G 1/2 0.1 2 2 2.5 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
97,12 € Natisni
100077RIE G 1/4 0.1 2 1 2.5 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
75,52 € Natisni
100094RIE G 1/2 0.5 8 2 10 63.0 110.0 150.0 5200
Čas dobave 3 - 5 dni
97,12 € Natisni
100088RIE G 3/8 0.2 4 2 6 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
97,12 € Natisni
139482RIE G 3/8 0.5 16 2 25 63.0 110.0 150.0 4500
Čas dobave 3 - 5 dni
95,31 € Natisni
100076RIE G 1/4 0.1 1 1 1.6 52.0 96.0 129.0 2200
Čas dobave 3 - 5 dni
75,52 € Natisni

Opis

Precision pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.2 - 4 bar

Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for applications requiring an extremely accurate working pressure.

The regulator button can be latched and locked.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 16
Velikost 1
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Material: Die-cast zinc
Tesnilo NBR
Membrane NBR
Pretok [l/min] 2750
Min. krmilno območje [bar] 0.2
Max. krmilno območje [bar] 4
Zaslon manometra max. [bar] 6
Poraba zraka Yes
Max. notranja poraba zraka 2.6 l/min (depending on secondary pressure)
A [mm] 52.0
B [mm] 129.0
C [mm] 96.0
Serija FUTURA
Srednje Compressed air, neutral gases
Merjenje pretoka At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
