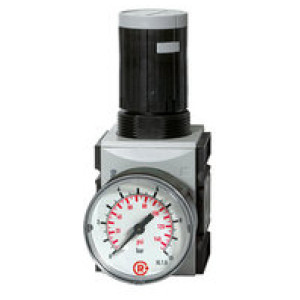

Natančen Tlačni reg.»FUTURA«Vel.1,G 1/4, 0.1 - 1 bar
SKU: 100076RIE
EAN: 4047322191067
Precision pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.1 - 1 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for applications requiring an extremely accurate working pressure.
The regulator button can be latched and locked.
Obrestno financiranje
- 13,91 € x 6 mesecev
- 27,51 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Velikost | Zaslon manometra max. [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100081RIE | G 3/8 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € |  | |
| 100087RIE | G 3/8 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 156640RIE | G 1/4 | 0.5 | 16 | 1 | 25 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 74,10 € | | |
| 100084RIE | G 3/8 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100095RIE | G 1/2 | 0.5 | 10 | 2 | 16 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100082RIE | G 3/8 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100090RIE | G 3/8 | 0.5 | 10 | 2 | 16 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100083RIE | G 3/8 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100093RIE | G 1/2 | 0.2 | 4 | 2 | 6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100080RIE | G 1/4 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100078RIE | G 1/4 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100091RIE | G 1/2 | 0.1 | 1 | 2 | 1.6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100085RIE | G 3/8 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 156641RIE | G 3/8 | 0.5 | 16 | 1 | 25 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | 74,10 € | | |
| 100086RIE | G 3/8 | 0.1 | 1 | 2 | 1.6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 95,31 € | | |
| 100079RIE | G 1/4 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 139483RIE | G 1/2 | 0.5 | 16 | 2 | 25 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 95,31 € | | |
| 100089RIE | G 3/8 | 0.5 | 8 | 2 | 10 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100092RIE | G 1/2 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100077RIE | G 1/4 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | | |
| 100094RIE | G 1/2 | 0.5 | 8 | 2 | 10 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 100088RIE | G 3/8 | 0.2 | 4 | 2 | 6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
| 139482RIE | G 3/8 | 0.5 | 16 | 2 | 25 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 95,31 € | | |
| 100076RIE | G 1/4 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 75,52 € | |
Opis
Precision pressure regulator »FUTURA«, incl. pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.1 - 1 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for applications requiring an extremely accurate working pressure.
The regulator button can be latched and locked.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 2200 |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 1 |
| Zaslon manometra max. [bar] | 1.6 |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 2.6 l/min (depending on secondary pressure) |

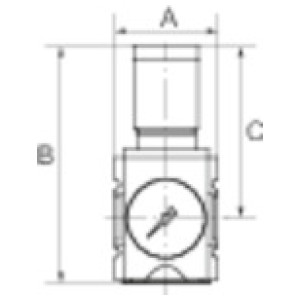

| A [mm] | 52.0 |
| B [mm] | 129.0 |
| C [mm] | 96.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
