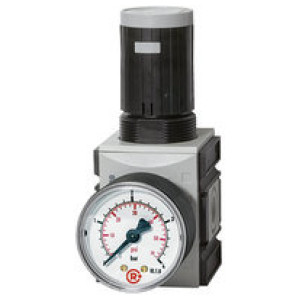

Natančen Tlačni reg.»FUTURA«Vel.1,G 1/4, 0.5 - 8 bar
SKU: 100101RIE
EAN: 4047322191449
Precision pressure regulator, cont. pressure supply »FUTURA«, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5 - 8 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
Povpraševanje
Navoj: G 1/4
Ohišje: PA66 GF60
Priključni navoj: Material: Die-cast zinc
Serija: FUTURA
Srednje: Compressed air, neutral gases
Max. notranja poraba zraka: 2.6 l/min (depending on secondary pressure)
B [mm]: 129.0
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Velikost | Zaslon manometra max. [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100098RIE | G 1/4 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100099RIE | G 1/4 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100100RIE | G 1/4 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100101RIE | G 1/4 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100102RIE | G 1/4 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100103RIE | G 3/8 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100104RIE | G 3/8 | 0.1 | 2 | 1 | 2.5 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100105RIE | G 3/8 | 0.2 | 4 | 1 | 6 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100106RIE | G 3/8 | 0.5 | 8 | 1 | 10 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100107RIE | G 3/8 | 0.5 | 10 | 1 | 16 | 52.0 | 96.0 | 129.0 | 2750 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Precision pressure regulator, cont. pressure supply »FUTURA«, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5 - 8 bar
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 2200 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 8 |
| Zaslon manometra max. [bar] | 10 |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 2.6 l/min (depending on secondary pressure) |

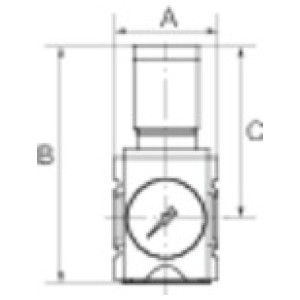

| A [mm] | 52.0 |
| B [mm] | 129.0 |
| C [mm] | 96.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
