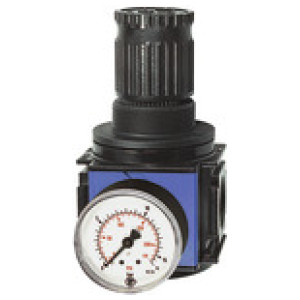

Natančen Tlačni reg. »variobloc« Vel.1, G 3/8, 0.1-3 bar
SKU: 149216RIE
EAN: 4047322584579
Precision pressure regulator »variobloc«, incl. pressure gauge, Size 1, G 3/8, Input pressure max. 25 bar, Control range 0.1-3 bar
Pre-pressure independent, reversible diaphragm pressure regulator with secondary venting for applications that require a precise pressure regulation. The line pressure is regulated by the pressure regulator to the set working pressure/secondary pressure and maintains this constantly regardless of pressure fluctuations and air consumption. The precision pressure regulator is characterised by a very low internal air consumption (< 1.5 l/min).
Povpraševanje
Navoj: G 3/8
Ohišje: Die-cast zinc
Serija: variobloc
Vzmet pokrova motorja: POM-brass
Max. notranja poraba zraka: 1.5 l/min (depending on secondary pressure)
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 149221RIE | G 1/2 | 0.5 | 2 | 10 | 10 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 149215RIE | G 1/4 | 0.5 | 1 | 10 | 10 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149223RIE | G 3/4 | 0.2 | 2 | 6 | 6 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149216RIE | G 3/8 | 0.1 | 1 | 3 | 3 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149220RIE | G 1/2 | 0.2 | 2 | 6 | 6 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149218RIE | G 3/8 | 0.5 | 1 | 10 | 10 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149225RIE | G 1 | 0.1 | 2 | 3 | 3 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149212RIE | G 1/4 | 0.1 | 1 | 3 | 3 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149224RIE | G 3/4 | 0.5 | 2 | 10 | 10 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149217RIE | G 3/8 | 0.2 | 1 | 6 | 6 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149214RIE | G 1/4 | 0.2 | 1 | 6 | 6 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149222RIE | G 3/4 | 0.1 | 2 | 3 | 3 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149226RIE | G 1 | 0.2 | 2 | 6 | 6 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149219RIE | G 1/2 | 0.1 | 2 | 3 | 3 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 149227RIE | G 1 | 0.5 | 2 | 10 | 10 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Precision pressure regulator »variobloc«, incl. pressure gauge, Size 1, G 3/8, Input pressure max. 25 bar, Control range 0.1-3 bar
Pre-pressure independent, reversible diaphragm pressure regulator with secondary venting for applications that require a precise pressure regulation. The line pressure is regulated by the pressure regulator to the set working pressure/secondary pressure and maintains this constantly regardless of pressure fluctuations and air consumption. The precision pressure regulator is characterised by a very low internal air consumption (< 1.5 l/min).
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 25 |
| Velikost | 1 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Vzmet pokrova motorja | POM-brass |
| Pretok [l/min] | 3200 |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 3 |
| Zaslon manometra max. [bar] | 3 |

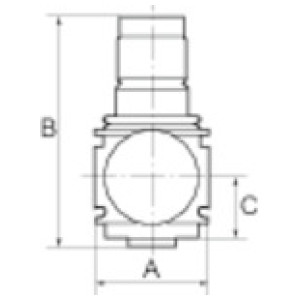

| A [mm] | 48.0 |
| B [mm] | 98.0 |
| C [mm] | 26.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 1.5 l/min (depending on secondary pressure) |
