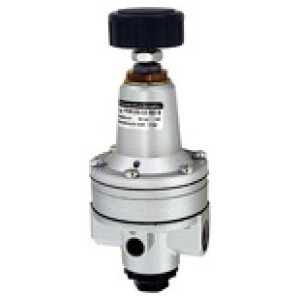

Natančen Tlačni reg.G 1/2Regulacijsko območje 0.05 - 5 bar

SKU: 101239RIE
EAN: 4047322108478

Precision pressure regulator without pressure gauge, G 1/2, Control range 0.05 - 5 bar, Input pressure max. 16 bar

With high flow rate and large secondary venting.

Diaphragm pressure regulators with large secondary venting for applications requiring an extremely accurate working pressure, especially at high flow rates.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Precision pressure regulator without pressure gauge, G 1/2, Control range 0.05 - 5 bar, Input pressure max. 16 bar

With high flow rate and large secondary venting.

Diaphragm pressure regulators with large secondary venting for applications requiring an extremely accurate working pressure, especially at high flow rates.

Tehnični podatki in specifikacije

Navoj G 1/2
Max. vhodni tlak [bar] 16
Ohišje Die-cast zinc
Tesnilo NBR
Poraba zraka Yes
Max. notranja poraba zraka 1.5 - 6 l/min, depending on input pressure and control range
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Navoj manometra G 1/4
Min. krmilno območje [bar] 0.05
Max. krmilno območje [bar] 5

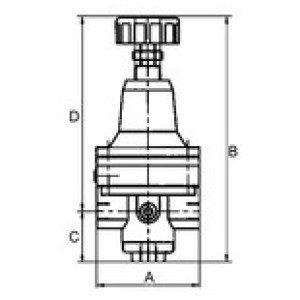

A [mm] 82.0
B [mm] 202.5
C [mm] 43.5
D [mm] 159.0
Srednje Micro-filtered, unoiled compressed air (0.01 µm)
Odzračevalni vtič G 3/8 (for mounting a silencer)
Pretok [l/min] 4500
