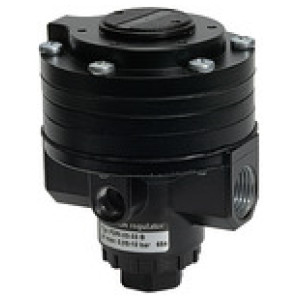

Natančen tlačni regulator, Pneumat. daljinsko vodeni, G 1/2
SKU: 101258RIE
EAN: 4047322108720
Precision pressure regulator, Pneumatically remote controlled via external pilot control valve, G 1/2, Control range 0.05 - 7 bar
With high flow rate and large secondary venting.
Pneumatically controlled diaphragm pressure regulators with large secondary venting
for applications requiring an extremely accurate working pressure, especially at high flow rates.
We recommend our »multifix« series of pilot controllers.
Povpraševanje
Nadzor zraka: G 1/8
Navoj: G 1/2
Navoj manometra: G 1/4
Odzračevalni vtič: G 3/8 (for mounting a silencer)
Ohišje: Die-cast zinc, painted black
Srednje: Micro-filtered, unoiled compressed air (0.01 µm)
Max. notranja poraba zraka: 6 l/min (depending on secondary pressure)
B [mm]: 108.0
Pretok: 3000 l/min
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 101258RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Precision pressure regulator, Pneumatically remote controlled via external pilot control valve, G 1/2, Control range 0.05 - 7 bar
With high flow rate and large secondary venting.
Pneumatically controlled diaphragm pressure regulators with large secondary venting
for applications requiring an extremely accurate working pressure, especially at high flow rates.
We recommend our »multifix« series of pilot controllers.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc, painted black |
| Tesnilo | NBR |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 6 l/min (depending on secondary pressure) |
| Odzračevalni vtič | G 3/8 (for mounting a silencer) |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 3000 l/min |
| Min. krmilno območje [bar] | 0.05 |
| Max. krmilno območje [bar] | 7 |
| Navoj manometra | G 1/4 |
| Max. vodeni tlak [bar] | 10 |
| Nadzor zraka | G 1/8 |

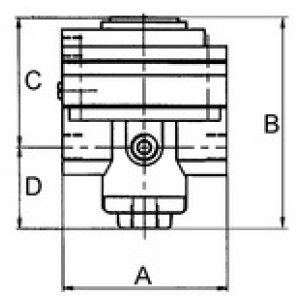

| A [mm] | 82.0 |
| B [mm] | 108.0 |
| C [mm] | 64.5 |
| D [mm] | 43.5 |
| Srednje | Micro-filtered, unoiled compressed air (0.01 µm) |
| Merjenje pretoka | At P1 = 5 bar, P2 = 3 bar and pressure drop Δp ≤ 0,1 bar |
